FN7660-32-M4

Overview

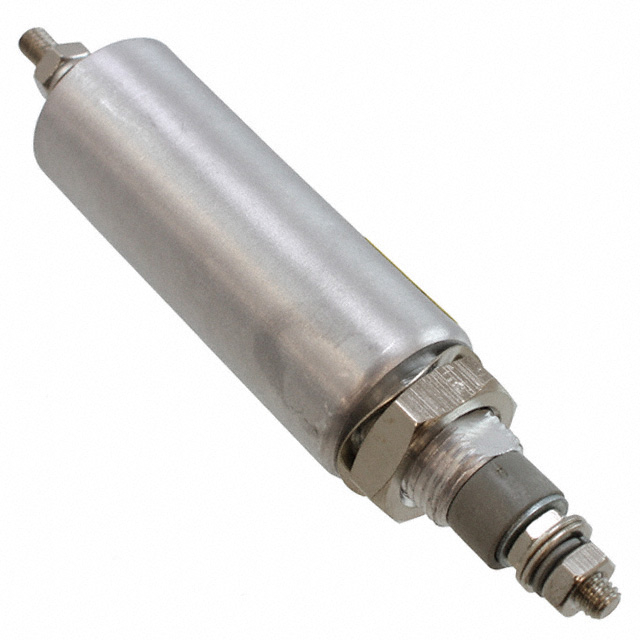

The FN7660-32-M4 is a single-channel LC (Pi) low-pass EMI feedthrough filter manufactured by TE Connectivity Schaffner. It features an inductance of 70nH and capacitance of 10000pF, rated for 32A current and 130V. The component utilizes axial threaded terminals for bolt installation and operates within a temperature range of -40°C to 100°C.

Feature Summary

• LC Pi topology providing third-order low-pass filtering characteristics
• Feedthrough design with axial threaded terminals for secure panel mounting
• High current handling capability suitable for power line applications

Applications

• Mobile device data lines
• Computer server systems
• Medical equipment

Procurement Notes

Verify the manufacturer part number FN7660-32-M4 against official TE Connectivity Schaffner documentation to confirm specifications. Ensure compatibility with system voltage ratings of 130V and current requirements of 32A. Check for RoHS compliance status and package dimensions matching the required enclosure space.

Selection Notes

Select this component when a single-phase low-pass filter with high current capacity is required. The LC Pi configuration offers effective noise attenuation. Verify that the bolt mounting style fits the chassis design and that the operating temperature range meets environmental conditions.

Part Context

This component belongs to the FN766X series of EMI feedthrough filters. It is designed for suppressing electromagnetic interference in power and signal lines. The product is actively supported by TE Connectivity Schaffner with available datasheets and compliance declarations.

Replacement Considerations

Public confirmed substitute part numbers are not provided in the source material. Consult TE Connectivity Schaffner for direct replacements or cross-reference based on identical electrical parameters and mechanical footprint.
