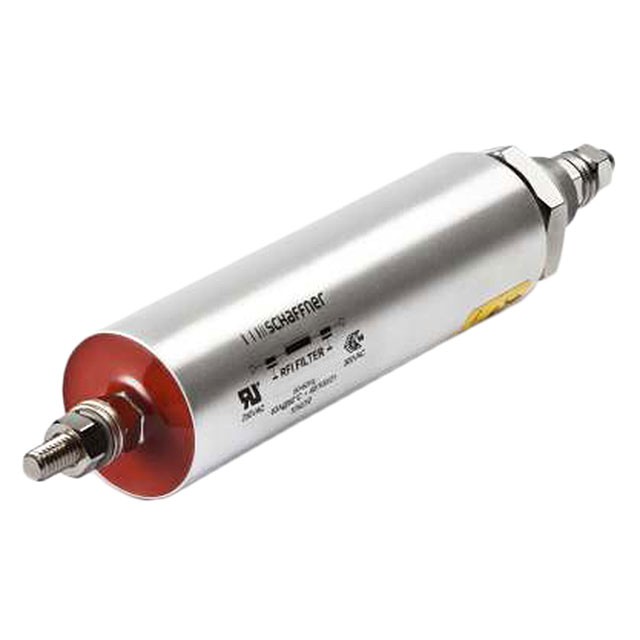

FN7660-63-M6

$128.38

Description：FILTER LC(PI) 70NH/0.1UF BOLT
Series：FN 766X
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:571ac5f4adda Category: EMI/RFI Filters (LC, RC Networks) Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FILTER LC(PI) 70NH/0.1UF BOLT
Series：FN 766X
Mfr：Schaffner EMC Inc.
Package：Tray
Type：Low Pass
Filter Order：3rd
Technology：LC (Pi)
Number of Channels：1
Center / Cutoff Frequency：-
Attenuation Value：-
Resistance - Channel (Ohms)：0.00042
Values：L = 70nH, C = 0.1µF
ESD Protection：No
Operating Temperature：-40°C ~ 100°C
Applications：Data Lines for Mobile Devices
Voltage - Rated：130V
Mounting Type：Bolt Mount
Package / Case：Axial - Threaded Terminals
Size / Dimension：0.984" Dia x 4.252" L (25.00mm x 108.00mm)
Height：-
Current：63 A
Grade：-
Qualification：-

Download product information

FN7660-63-M6

Overview

The FN7660-63-M6 is a single-phase LC(Pi) EMI feedthrough filter from the FN766X series, manufactured by TE Connectivity Schaffner. It features a third-order low-pass configuration with an inductance of 70nH and capacitance of 0.1µF. Rated for 63A maximum DC current and 130V, it utilizes axial threaded M6 terminals for bulkhead mounting. The component operates within a temperature range of -40°C to +100°C and has a maximum channel resistance of 0.00042 ohms.

Feature Summary

LC(Pi) topology providing third-order attenuation for effective noise suppression
Axial design with threaded terminals enabling secure bulkhead installation
Low inductance and capacitance values optimized for high-frequency interference reduction

Applications

Computer server power distribution units
Medical equipment signal lines
Mobile device data transmission circuits

Procurement Notes

Verify the specific capacitance value against the latest manufacturer datasheet, as sources indicate variations between 0.1µF and other ratings. Confirm the M6 thread specification matches the panel cutout requirements. Ensure the 63A current rating aligns with the system's peak load demands before finalizing procurement orders.

Selection Notes

Select this component when high-current DC filtering is required in space-constrained bulkhead applications. The M6 terminal size offers a balance between mechanical stability and panel penetration density. Consider the 70nH inductance for applications requiring minimal voltage drop while maintaining significant high-frequency attenuation characteristics.

Part Context

This part belongs to the FN766X series of bulkhead-mounted EMI filters designed for demanding industrial and medical environments. The series provides robust shielding and reliable performance under varying thermal conditions. The FN7660 variant specifically targets lower capacitance needs compared to higher-capacitance siblings in the same family.
