FN9246B-6-06

Overview

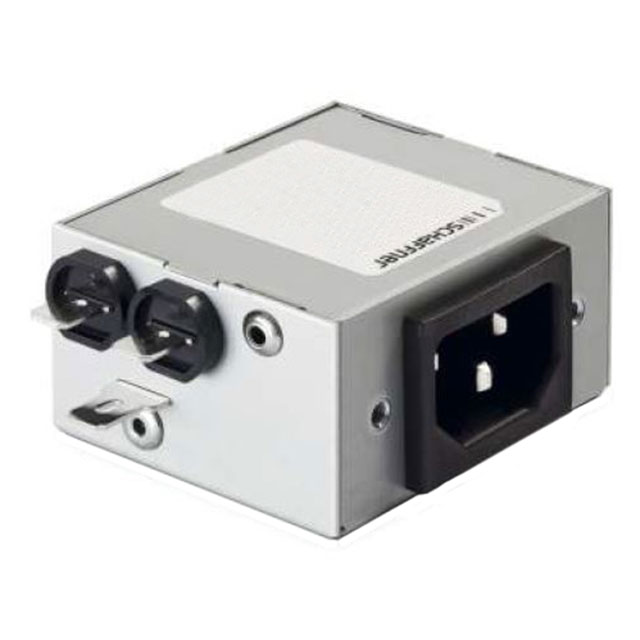

The Schaffner FN9246B-6-06 is a single-phase EMC/EMI line filter rated for 6 A and 250 VAC. It features a single-stage configuration with quick connect terminals and operates within a DC to 400 Hz frequency range. The unit utilizes an aluminum chassis for chassis mounting and includes a standard filter type designed for general applications.

Feature Summary

• Single-stage EMI/RFI filtering architecture
• Aluminum chassis construction
• Quick connect terminal interface

Applications

• General industrial equipment
• Medical devices
• Information technology hardware

Procurement Notes

Verify the specific suffix 'B' against official TE Connectivity Schaffner documentation to confirm exact compliance certifications and internal component variations. Ensure the required amperage and voltage ratings align with the target system's power entry requirements before finalizing procurement.

Selection Notes

Select this module when a single-stage filter solution is sufficient for the application's noise suppression needs. The chassis mount style and quick connect termination facilitate straightforward integration into equipment enclosures requiring robust grounding and simple wiring connections.

Part Context

This component belongs to the FN9246 series of AC power entry modules. The series offers various current ratings and mounting options, providing standardized solutions for electromagnetic interference suppression in power supply inputs across multiple electronic device categories.

Replacement Considerations

FN9246-6-06
