Product Detailed Parameters
- Description：INTELLIGENT POWER MODULE, 600V,
- Series：*
- Mfr：Fairchild Semiconductor
- Package：Bulk
- Motor Type - Stepper：-
- Motor Type - AC, DC：-
- Function：-
- Output Configuration：-
- Interface：-
- Technology：-
- Step Resolution：-
- Applications：-
- Current - Output：-
- Voltage - Supply：-
- Voltage - Load：-
- Operating Temperature：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

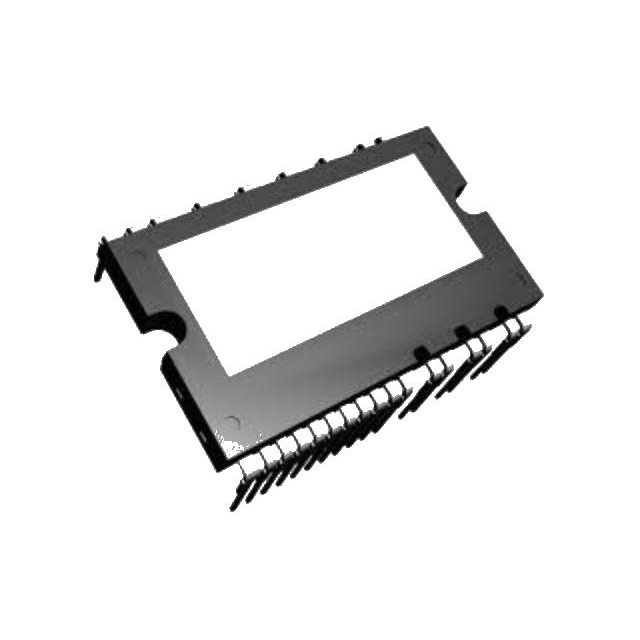

The FNB80560T3 is a Motion Smart Power Module (SPM) from the 8 Series, manufactured by Fairchild Semiconductor. This integrated power module combines multiple IGBTs and diodes into a single package to facilitate motor control applications. The component utilizes advanced semiconductor technology to provide high current capability and efficient switching performance within a compact form factor designed for industrial automation and servo systems.
Feature Summary
- Integrates multiple insulated gate bipolar transistors and freewheeling diodes into a single smart power module
- Designed specifically for motion control and general purpose inverter applications requiring high speed switching
- Features low saturation voltage characteristics to minimize conduction losses during operation
Applications
- AC and DC motor controls
- General purpose inverters
- Robotics systems
- Servo controls
Procurement Notes
Verify the specific manufacturer origin as the part number appears in databases associated with ON Semiconductor's Motion SPM 8 Series documentation. Ensure the datasheet provided matches the exact electrical specifications required for your inverter design, particularly regarding thermal resistance and pin configuration compatibility.
Selection Notes
Select this module for applications requiring integrated three-phase bridge structures without discrete component matching. Consider the thermal management requirements of the TO-247 style mounting if applicable to the specific variant. Evaluate the switching speed against electromagnetic interference constraints in sensitive robotic environments.
Part Context
This component belongs to the Motion SPM 8 Series, a line of intelligent power modules designed for high-performance motor drive applications. These modules consolidate power switching elements to reduce board space and simplify assembly compared to discrete solutions. The series targets industrial markets demanding reliability and efficiency in variable frequency drives.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided source material. Verify cross-compatibility with existing driver circuits before replacing discrete IGBT assemblies.
