Product Detailed Parameters
- Description：NOISE GEN 0.1 MHZ - 0.5 GHZ 15 V
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Noise Source
- Frequency：100kHz ~ 500MHz
- RF Type：Radar
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

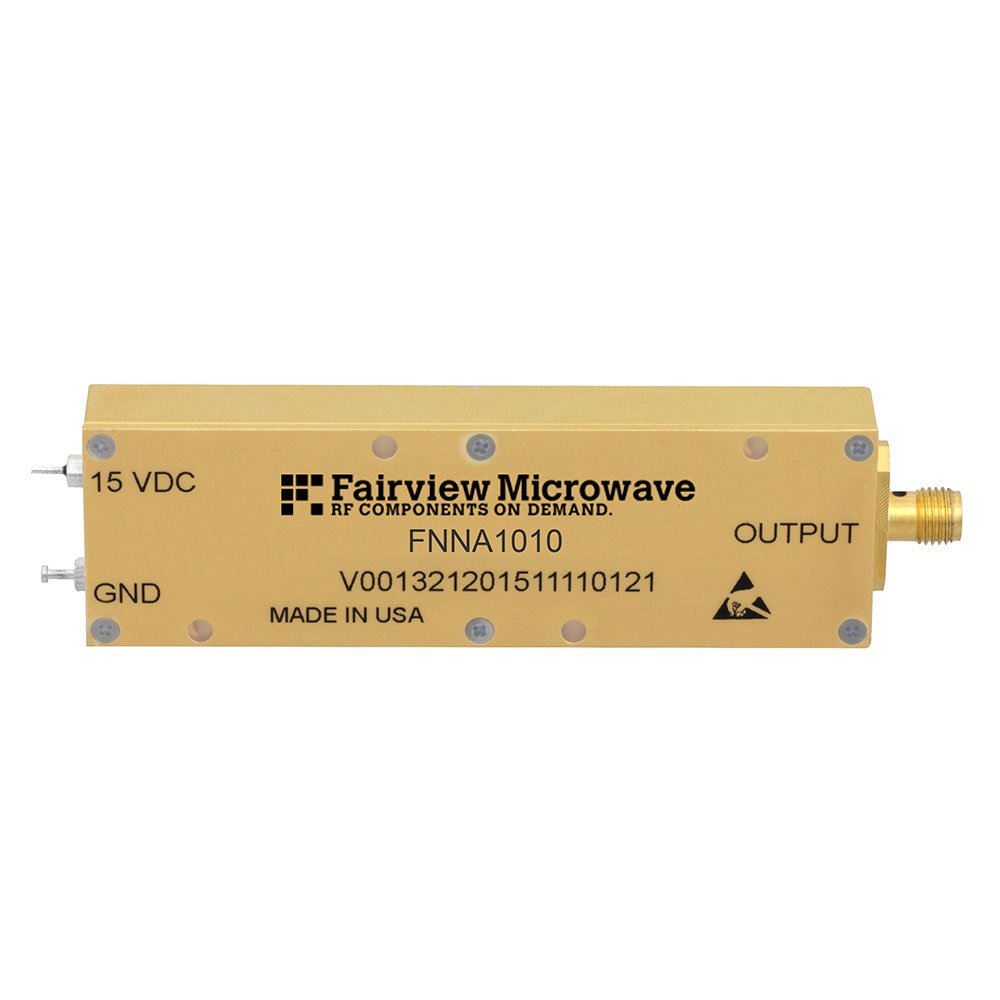

The FNNA1010 is an amplified noise source module manufactured by Fairview Microwave. It operates within a frequency range of 0.1 MHz to 500 MHz. The device provides a noise output power (Pout) of 10 dBm and requires a supply voltage of +15 VDC. It utilizes SMA connectors for interface connections. This component is categorized under RF miscellaneous ICs and modules, specifically designed as a radar noise source.
Feature Summary
- Amplified noise generation capability
- Wideband operation from low frequency to UHF
- Integrated SMA connector interface
Applications
- Radar system testing
- Receiver sensitivity measurement
- Noise figure analysis
Procurement Notes
Verify the specific datasheet version provided by Fairview Microwave or authorized distributors to confirm electrical tolerances and mechanical dimensions. Ensure that the +15 VDC power supply requirements are met in the target application environment. Confirm SMA connector gender and mating compatibility before integration into existing test setups.
Selection Notes
Select this module when a broadband noise source covering frequencies down to 0.1 MHz is required. The 10 dBm output level suits applications needing significant signal injection without external amplification. Verify that the SMA interface aligns with the host equipment's input ports. Consider thermal management if operating continuously at maximum output levels.
Part Context
Fairview Microwave specializes in high-quality RF, microwave, and mmWave components. The FNNA1010 belongs to their portfolio of RF miscellaneous ICs and modules. These products support various communication and sensing technologies. The brand emphasizes same-day shipping capabilities globally for its extensive SKU inventory.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Users should consult Fairview Microwave directly for cross-reference information or alternative product recommendations based on specific performance requirements.
