FNNA1012

Overview

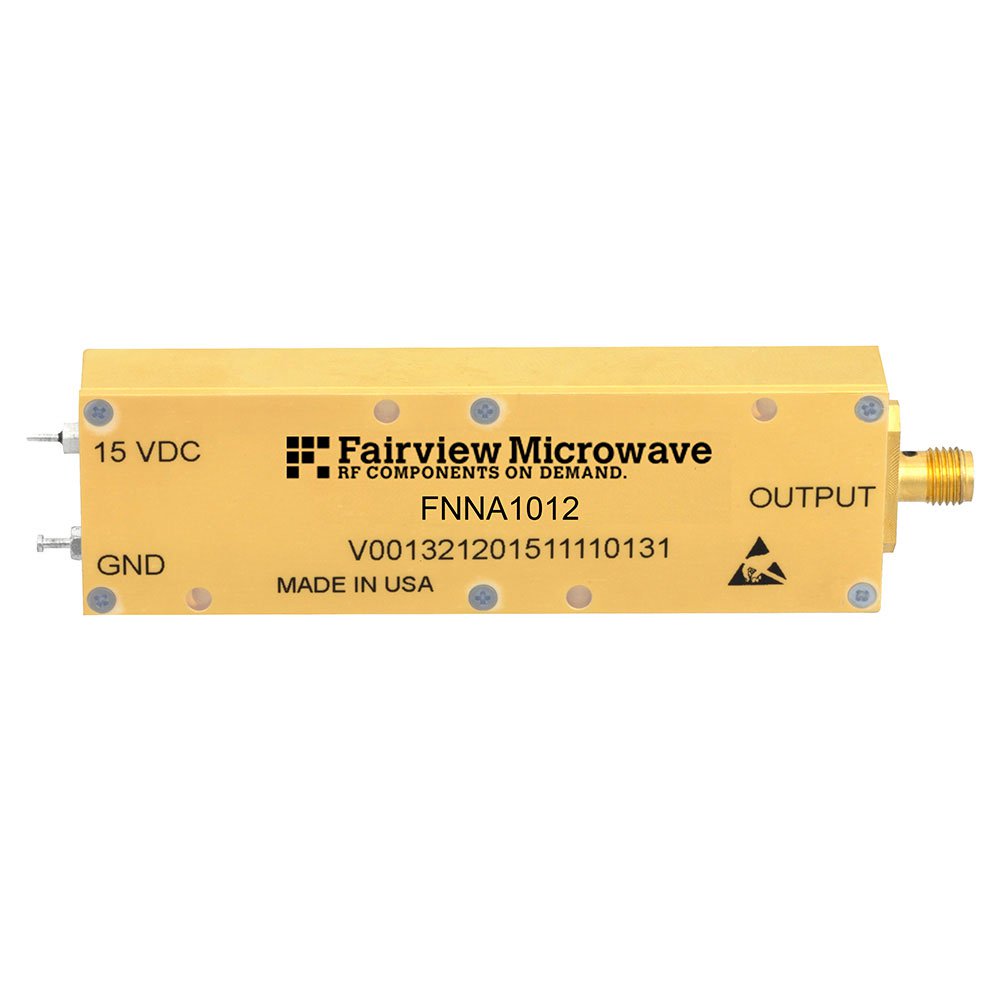

The FNNA1012 is an amplified noise source module manufactured by Fairview Microwave. It operates within a frequency range of 10 MHz to 3 GHz and utilizes SMA connectors. The module provides a noise output power (Pout) of 0 dBm and requires a +15 VDC supply voltage. This component serves as a calibrated signal source for testing RF systems across the specified bandwidth.

Feature Summary

• Integrated amplification for enhanced noise output performance
• Calibrated noise source suitable for system characterization
• SMA interface for standard RF connectivity

Applications

• RF receiver sensitivity testing
• Noise figure measurement setups
• System calibration procedures

Procurement Notes

Verify the specific datasheet version for the FNNA1012 to confirm mechanical dimensions and connector gender details. Ensure the test environment supports the required +15 VDC supply and matches the SMA interface specifications. Confirm that the 10 MHz to 3 GHz operational range aligns with your application requirements before integration.

Selection Notes

Select this module when a stable, amplified noise source is needed for frequencies up to 3 GHz. Compare against non-amplified sources if higher output power is critical. Verify that the SMA connector type matches existing test equipment interfaces. Consider thermal management if operating continuously at maximum rated conditions.

Part Context

This part belongs to Fairview Microwave's line of RF modules and noise sources. It complements other calibration and test equipment in the manufacturer's portfolio, providing essential signal generation capabilities for laboratory and field testing environments requiring precise noise parameters.

Replacement Considerations

No public confirmed substitute part numbers are available for the FNNA1012. Direct replacement requires matching the 0 dBm output, 10 MHz-3 GHz range, and +15 VDC supply. Cross-reference only with components explicitly listed as equivalents in official Fairview documentation.
