Product Detailed Parameters
- Description：NOISE GEN 7200 MHZ - 8.4 GHZ 28
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Noise Source
- Frequency：7.2GHz ~ 8.4GHz
- RF Type：802.11ac, ATE, Radar
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：BNC In-Line Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

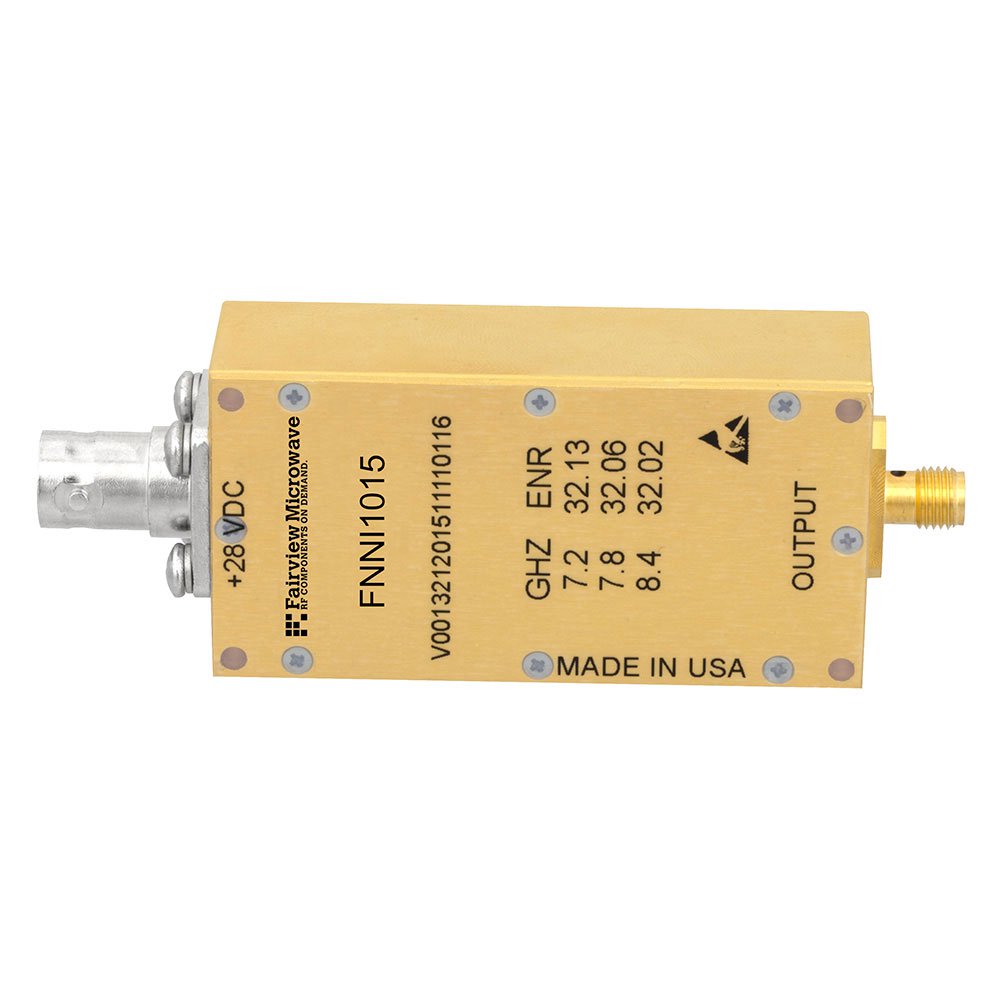

The FNNI1015 is an integral isolator noise source module manufactured by Fairview Microwave. It operates within a frequency range of 7.2 GHz to 8.4 GHz, covering the X-band spectrum. The unit utilizes SMA connectors for signal interface and is designed for applications including 802.11ac testing, Automatic Test Equipment (ATE), and radar systems. This component serves as a calibrated noise source integrated with isolation capabilities.
Feature Summary
- Integrates noise source functionality with isolator technology
- Operates across the 7.2 GHz to 8.4 GHz frequency band
- Equipped with SMA connector interfaces
Applications
- 802.11ac wireless standard testing
- Automatic Test Equipment (ATE) calibration
- Radar system analysis and verification
Procurement Notes
Verify the specific revision or manufacturing date code when sourcing this item, as availability may vary between new stock and tested surplus units. Confirm that the SMA connectors are intact and free from physical damage prior to integration. Ensure the operating frequency range aligns precisely with your test requirements for the 7.2 GHz to 8.4 GHz band. Request current performance data sheets if available for critical calibration needs.
Selection Notes
Select the FNNI1015 when a combined noise source and isolator solution is required for X-band applications. This module is suitable for environments needing stable noise injection without reverse signal reflection. Consider its compatibility with SMA-based test setups. Evaluate whether the integrated design offers space advantages over discrete components in ATE or radar test fixtures.
Part Context
Fairview Microwave produces specialized RF modules for testing and measurement. The FNNI1015 belongs to their line of integral noise source modules. These components are typically used in laboratory and industrial settings where precise noise figure measurements and signal integrity checks are necessary. The brand focuses on providing reliable RF solutions for complex electronic testing scenarios.
Replacement Considerations
No direct public substitute part numbers are documented for this specific model. Users requiring replacement should verify compatibility based on frequency range, connector type, and noise power output specifications rather than relying on cross-reference lists.
