FO7LSCBE125.0-T2

Oscillators Overview

The FO7LSCBE125.0-T2 is a standard clock oscillator manufactured by Fox Electronics, operating at a nominal frequency of 125 MHz. It features LVDS output format and requires a supply voltage of 3.3 V. The device provides ±50 ppm frequency stability across the full industrial temperature range of -40°C to +85°C. It utilizes a surface-mount package with dimensions of 7.5 mm x 5.2 mm x 1.6 mm. The component is part of the FO7LS series and is RoHS compliant.

Oscillators Feature Summary

• Provides stable 125 MHz clock signal generation for digital systems
• Utilizes LVDS output format for high-speed signal integrity
• Operates reliably within the extended industrial temperature range

Oscillators Applications

• High-speed data communication interfaces
• Network equipment clocking
• Industrial control system timing

Oscillators Procurement Notes

Verify the specific ordering suffix and voltage requirements against the official datasheet before procurement. Confirm that the LVDS output format matches the receiving circuit's input specifications. Ensure the 3.3V supply voltage aligns with the system power design. Check for any recent product change notifications or discontinuation notices from the manufacturer to ensure long-term availability.

Oscillators Selection Notes

Select this component when a 125 MHz clock source with LVDS outputs is required. Consider the ±50 ppm stability specification for timing-sensitive applications. Evaluate the 7.5 mm x 5.2 mm footprint against available PCB space. Verify compatibility with the 3.3V logic level and industrial temperature range requirements of the target environment.

Oscillators Part Context

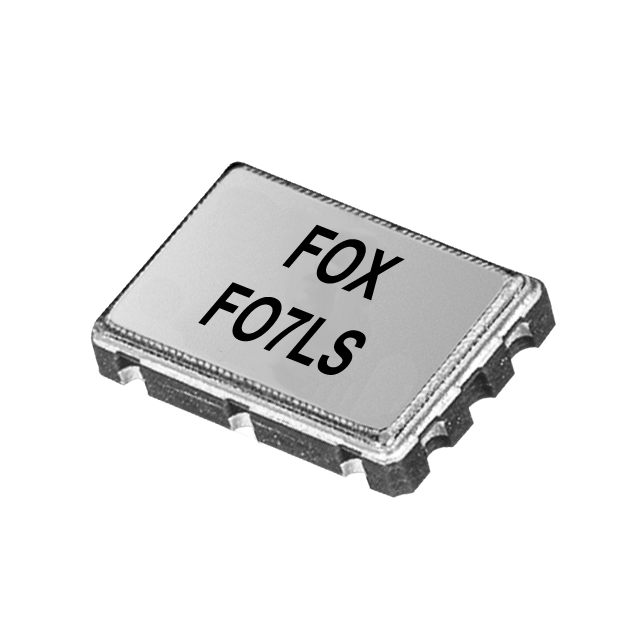

This oscillator belongs to the FO7LS series from Fox Electronics, designed for general-purpose clocking applications. The series offers various frequencies and output formats. The FO7LSCBE125.0-T2 specifically targets 125 MHz needs with LVDS signaling. It is distinct from HCMOS variants in the same family due to its differential output structure.

Oscillators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer for current alternatives if this specific model is discontinued.
