FP100R12W3T7B11BPSA1

Overview

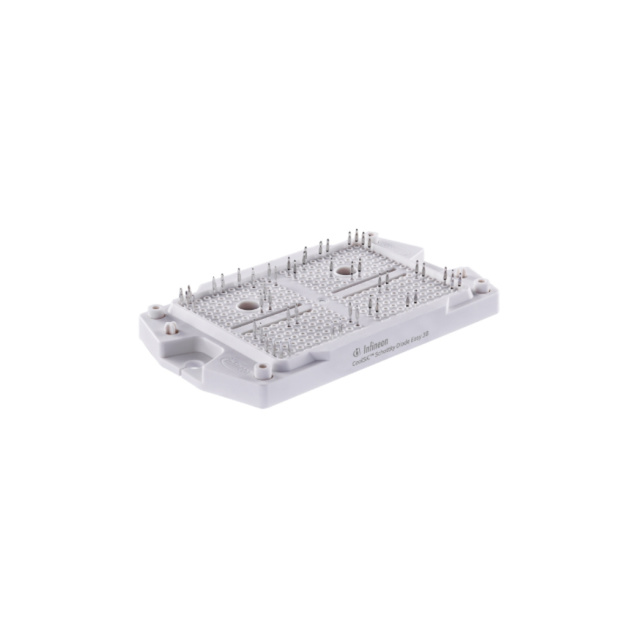

The FP100R12W3T7B11BPSA1 is an EasyPIM™ module integrating TRENCHSTOP™ IGBT7 technology with emitter-controlled diodes and a PressFIT interface. It features a 1200 V collector-emitter voltage (VCES) and a nominal continuous DC collector current of 100 A at 25 °C, with a repetitive peak current capability of 200 A. The inverter IGBT exhibits a typical saturation voltage of 1.50 V at 25 °C. The integrated rectifier diode supports up to 1600 V reverse voltage. The module includes an NTC thermistor rated at 5 kΩ at 25 °C for thermal monitoring.

Feature Summary

• Integrates TRENCHSTOP™ IGBT7 and emitter-controlled diodes within a single compact package.
• Utilizes PressFIT contact technology for reliable connection without soldering.
• Includes an integrated NTC thermistor for precise junction temperature monitoring.
• Features an Al2O3 substrate providing high power density and low thermal resistance.

Applications

• Air conditioning systems
• Auxiliary inverters
• Motor drives
• Servo drives
• UPS systems

Procurement Notes

Verify the specific ordering suffix B11 against official Infineon documentation to confirm the exact configuration and packaging details. Ensure that the procurement channel provides valid traceability data consistent with industrial quality standards. Cross-reference the datasheet revision history to ensure the latest technical specifications are being considered during acquisition.

Selection Notes

Select this component when a three-phase inverter topology combined with a rectifier stage is required in a space-constrained design. The 1200 V rating suits medium-voltage industrial applications. Verify that the system's thermal management can maintain the heatsink temperature within limits to support the specified 100 A continuous current rating under expected operating conditions.

Part Context

This part belongs to the EasyPIM™ family from Infineon Technologies, designed for high-power density applications. It combines inverter switches, rectifier diodes, and brake-chopper components into one unit. The integration reduces parasitic inductance and simplifies the layout compared to discrete solutions, making it suitable for demanding industrial power conversion tasks.

Replacement Considerations

Consult official Infineon substitution guides for verified alternatives. Generic cross-references may not match the specific TRENCHSTOP™ 7 characteristics or the PressFIT mechanical interface requirements.

FAQ

What is the maximum operating junction temperature?

The maximum operating junction temperature (Tvj op) is 175 °C. Operation above 150 °C is permitted under overload conditions as detailed in application note AN 2018-14.

How does the module handle insulation?

The module provides 2.5 kV AC isolation for 1 minute between terminals and the heatsink. It uses an Al2O3 substrate for basic insulation class 1 compliance according to IEC 61140.

What is the function of the integrated NTC?

The integrated NTC thermistor has a rated resistance of 5 kΩ at 25 °C. It allows for real-time monitoring of the module's internal temperature to prevent overheating.
