FP25R12W2T7BPSA1

Overview

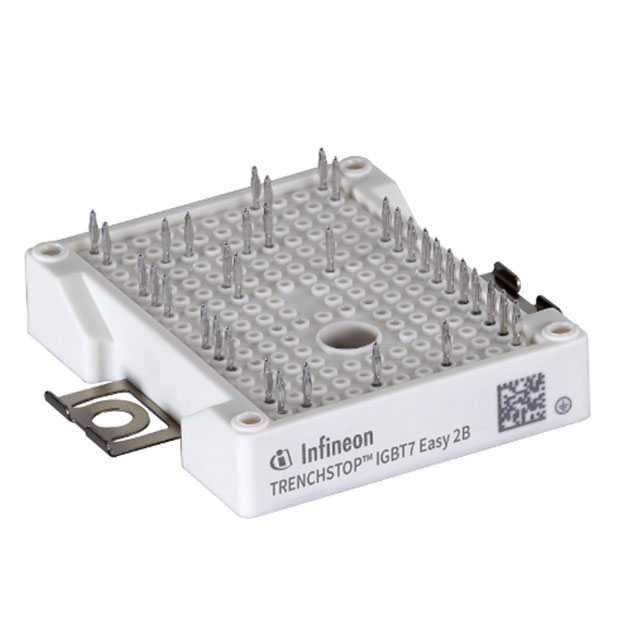

The FP25R12W2T7BPSA1 is a TRENCHSTOP IGBT7 EasyPIM module featuring a 3-phase inverter and brake-chopper topology. It supports a collector-emitter voltage of 1200 V with a nominal continuous DC collector current of 25 A at 115°C heatsink temperature, reaching a repetitive peak current of 50 A. The module integrates emitter-controlled diodes and an NTC thermistor (5 kΩ at 25°C). Operating temperatures range from -40°C to +175°C for switching conditions. Key electrical parameters include a typical saturation voltage of 1.60 V and a thermal resistance of 1.09 K/W per IGBT junction to heat sink.

Feature Summary

• Integrates TRENCHSTOP IGBT7 technology with low saturation voltage for optimized power density.
• Includes a built-in NTC thermistor for precise internal temperature monitoring.
• Features Al2O3 substrate insulation providing 2.5 kV AC isolation capability.
• Supports overload operation up to 175°C junction temperature.

Applications

• Air conditioning systems
• Auxiliary inverters
• Motor drives

Procurement Notes

Verify the component authenticity by checking the module label code against Infineon standards. Confirm that the specific BPSA1 suffix matches the required RoHS compliance and packaging specifications. Ensure the gate driver selection aligns with the recommended Infineon drivers listed in official documentation to guarantee proper switching performance.

Selection Notes

Select this module when designing three-phase inverter circuits requiring high power density and robust short-circuit withstand capabilities. The integrated brake-chopper simplifies DC bus braking applications. Verify that the system's thermal management can maintain the heatsink temperature within the specified limits to sustain the 25 A continuous current rating effectively.

Part Context

This component belongs to the Infineon EasyPIM series utilizing the TRENCHSTOP IGBT7 generation. It combines inverter switches, rectifier diodes, and a brake-chopper into a single compact package. The design targets industrial applications demanding high reliability and efficient thermal performance under varying load conditions.

Replacement Considerations

Consult official Infineon cross-reference lists for verified substitutes. Ensure any replacement maintains the same 1200 V rating, 25 A current capacity, and EasyPIM mechanical footprint. Verify compatibility with existing gate drive requirements and thermal interface materials before implementation.

FAQ

What is the maximum operating junction temperature?

The module supports switching operations up to a maximum junction temperature of 175°C, allowing for overload conditions above 150°C as detailed in application notes.

Does the module include protection features?

Yes, it includes an integrated NTC thermistor for temperature monitoring and is qualified for industrial applications according to IEC standards, ensuring robustness against environmental stresses.

What is the configuration of the internal diodes?

The module contains emitter-controlled diodes for the inverter legs and standard diodes for the rectifier and brake-chopper sections, optimizing reverse recovery characteristics.
