FPBB-U3RI-0390.VD

Power Line Filter Modules Overview

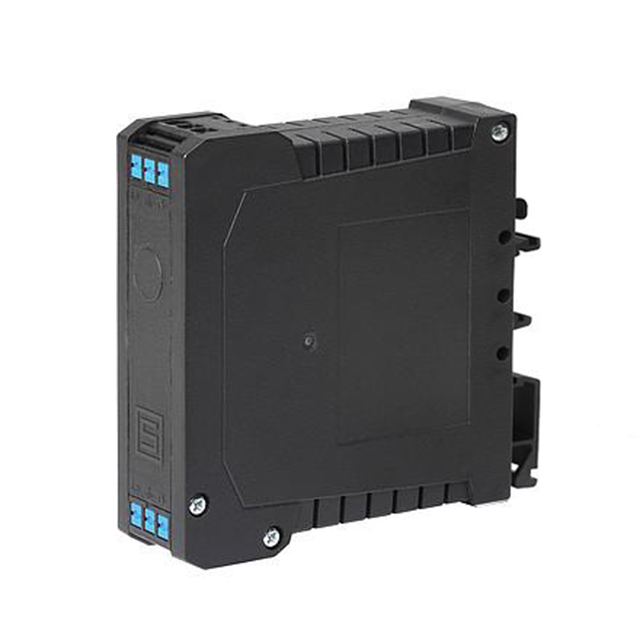

The FPBB-U3RI-0390.VD is a single-phase power line filter module from the FPBB RAIL series, designed for DIN rail mounting. It features spring cage terminals and a two-stage filtering architecture. The unit is rated for 250V AC and 250V DC at a continuous current of 3A, supporting both 50Hz and 60Hz frequencies. This dual-voltage capability facilitates versatile integration into various electrical systems requiring compact EMC suppression.

Power Line Filter Modules Feature Summary

• Dual voltage rating for AC and DC applications
• Spring cage terminal connection system
• Two-stage filtering design

Power Line Filter Modules Applications

• General purpose industrial equipment
• Single-phase power distribution systems
• EMC suppression in control cabinets

Power Line Filter Modules Procurement Notes

Verify the specific suffix .VD against official Schurter documentation to confirm exact technical specifications and compliance status. Ensure compatibility with standard DIN rail mounting profiles and verify that the spring cage terminals meet the required wire gauge standards for the intended installation environment.

Power Line Filter Modules Selection Notes

Select this component when a compact, DIN rail-mountable solution is required for single-phase circuits. The dual voltage rating makes it suitable for mixed AC/DC environments. Verify that the 3A continuous current rating aligns with the maximum load requirements of the protected circuitry.

Power Line Filter Modules Part Context

This module belongs to the FPBB RAIL series by Schurter Inc., which specializes in compact power line filters. The series is characterized by its modular design and ease of installation on standard DIN rails, providing efficient electromagnetic interference suppression for sensitive electronic loads in industrial settings.

Power Line Filter Modules Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data.
