Product Detailed Parameters
- Description：SPM4 CON 600V 15A
- Series：-
- Mfr：onsemi
- Package：Tube
- Motor Type - Stepper：-
- Motor Type - AC, DC：-
- Function：-
- Output Configuration：-
- Interface：-
- Technology：-
- Step Resolution：-
- Applications：-
- Current - Output：-
- Voltage - Supply：-
- Voltage - Load：-
- Operating Temperature：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

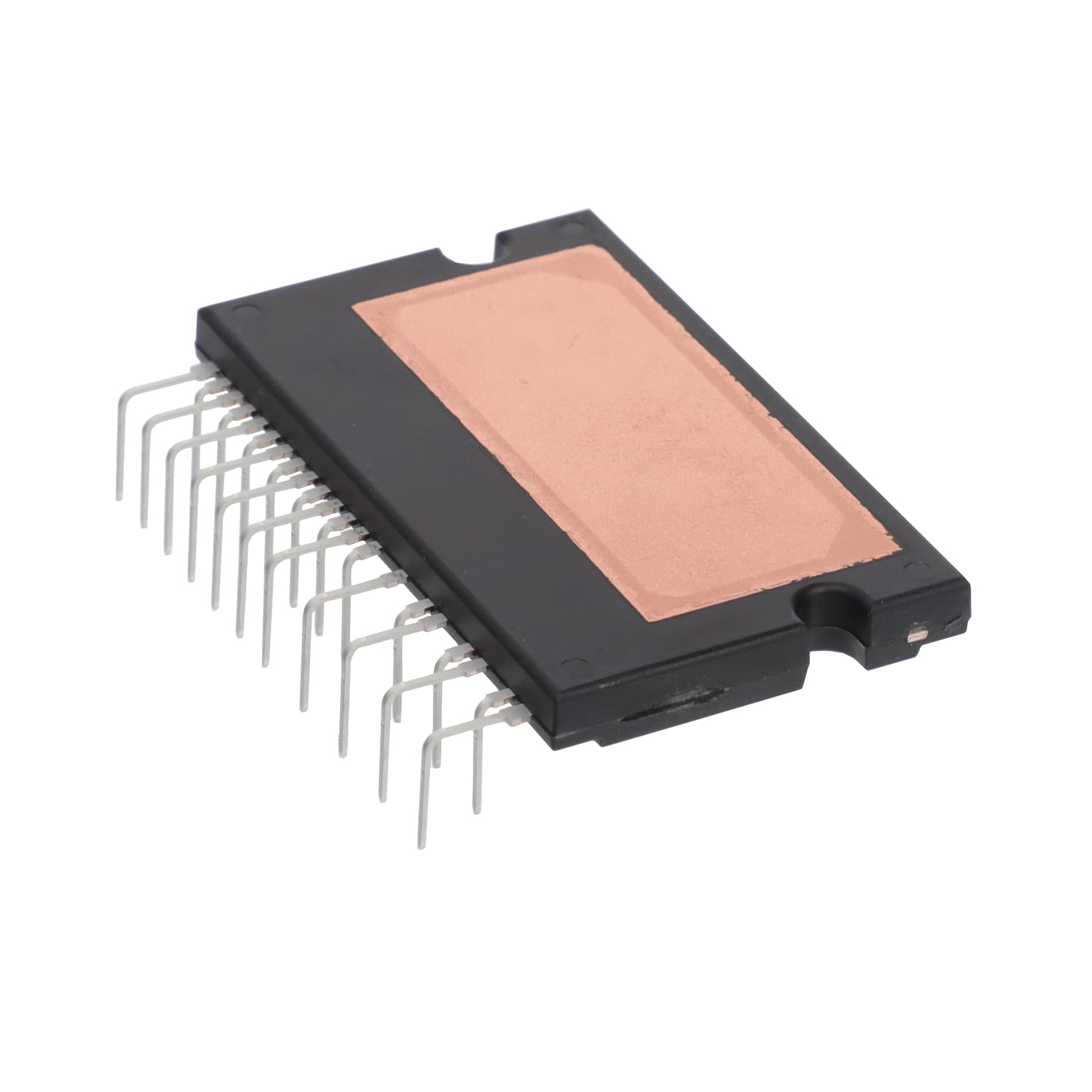

The FPCS1560L is a SPM4 CON intelligent power module from onsemi, designed for motor control applications. It integrates a 600V voltage rating with a 15A continuous current capacity within a single package. This component combines power switching elements with integrated driver and protection circuitry to simplify system design. The module supports high-frequency operation suitable for various industrial motor drive architectures.
Feature Summary
- Integrates power switching devices with dedicated gate drivers
- Includes built-in protection mechanisms against overcurrent and thermal faults
- Designed for compact motor control board implementations
Applications
- Industrial servo drives
- Pump and fan motor control systems
- Office automation equipment actuators
Procurement Notes
Verify the specific suffix designation to ensure compatibility with required isolation and pinout configurations. Confirm that the thermal management solution matches the module's dissipation requirements for the intended duty cycle. Ensure the driving circuitry aligns with the internal logic levels and timing specifications provided in the official datasheet.
Selection Notes
Select this module when space constraints require integrated power and driver stages. Evaluate the thermal resistance characteristics against the ambient operating conditions. Consider the switching frequency limits to optimize efficiency and minimize electromagnetic interference in the target application environment.
Part Context
This component belongs to onsemi's SPM4 series of intelligent power modules. These modules are engineered to reduce board space and complexity by combining multiple power components into a single unit. The series targets applications requiring reliable motor control with simplified peripheral circuitry.
Replacement Considerations
Consult official cross-reference lists for direct substitutes. Verify pin compatibility and electrical ratings before substituting with other SPM4 variants or competing intelligent power modules.
