FPP06R001

Voltage Regulators - DC DC Switching Regulators Overview

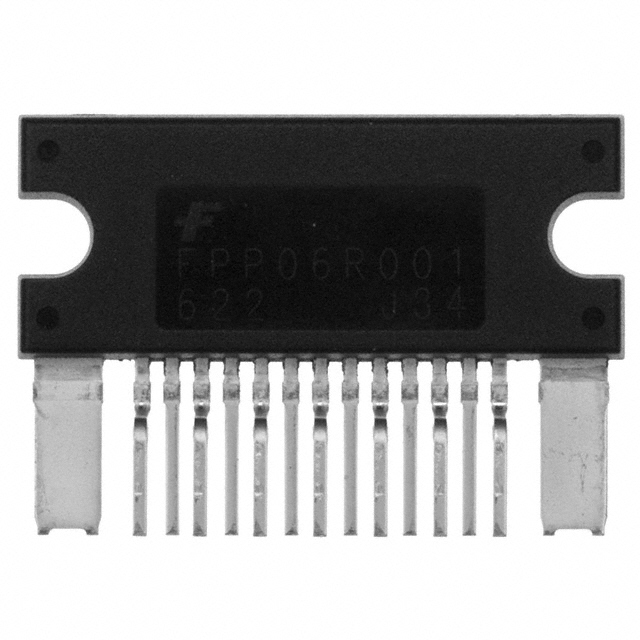

The FPP06R001 is a power smart passive module integrating a single N-channel power MOSFET and a gate driver IC within a transfer molded package. It features a 75V voltage rating with a typical on-resistance of 3.6mΩ and a gate driver capability of 2.5A. Designed for synchronous rectification in DC-DC converters, it supports a 100kHz switching frequency. The device operates within an ambient temperature range of -40°C to +85°C.

Voltage Regulators - DC DC Switching Regulators Feature Summary

• Integrates power MOSFET and high-current gate driver in a single compact package
• Optimized for synchronous rectification applications
• Provides low on-resistance for efficient energy conversion

Voltage Regulators - DC DC Switching Regulators Applications

• Secondary side synchronous rectifiers in DC-DC converters
• Positive forward topology power supplies with RCD clamps
• High-efficiency energy conversion systems

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific package type and pinout configuration against your PCB footprint requirements before procurement. Confirm that the 75V rating and 3.6mΩ resistance meet your circuit's electrical demands. Ensure thermal management solutions are adequate for the intended operating temperature range up to 85°C. Cross-reference with official datasheets to validate compatibility with your chosen gate drive signals.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when space constraints require integration of both switching element and driver. It is suitable for designs prioritizing efficiency in synchronous rectification topologies. Consider the 2.5A drive capability for appropriate load handling. Evaluate the 3.6mΩ resistance impact on conduction losses relative to system efficiency targets.

Voltage Regulators - DC DC Switching Regulators Part Context

This device belongs to the family of integrated power modules designed to simplify power supply design by combining discrete components. It addresses the need for compact, reliable solutions in modern electronic equipment where size and efficiency are critical. The integration reduces component count and potential failure points associated with separate discrete arrangements.

Voltage Regulators - DC DC Switching Regulators Replacement Considerations

Consult onsemi's cross-reference tools for compatible alternatives. Verify functional equivalence regarding voltage ratings, current capabilities, and package dimensions. Review manufacturer datasheets to confirm suitability for specific application requirements before substitution.
