FRS200CA120

Overview

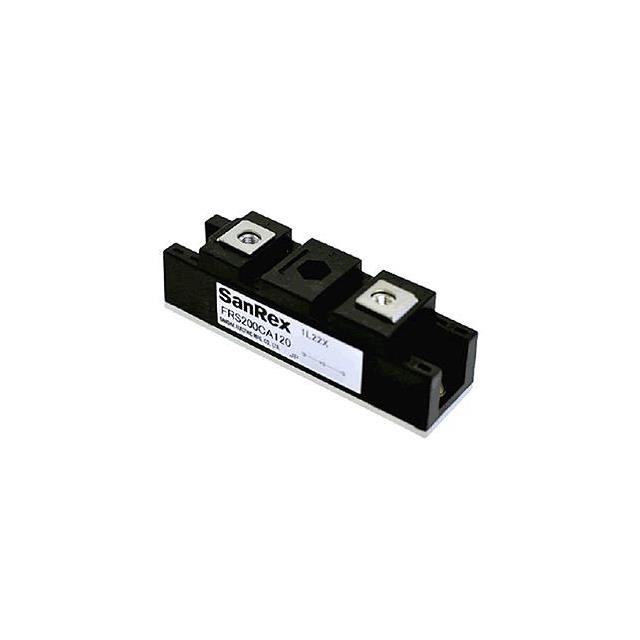

The SanRex FRS200CA120 is a high-speed isolated diode module designed for high-power switching applications. It features a repetitive peak reverse voltage of 1200 V and a DC reverse voltage of 960 V. The module supports a continuous forward current of 200 A at a case temperature of 78°C, with a surge forward current capability of 3300 A. Key electrical characteristics include a maximum forward voltage drop of 1.8 V and a reverse recovery time of 350 ns. The isolation breakdown voltage is 2500 V RMS, and the operating junction temperature range spans from -40°C to +150°C.

Feature Summary

• High-speed fast recovery design optimized for low loss and high-frequency control
• Isolated mounting base providing enhanced safety and thermal management
• High surge current capability suitable for demanding transient conditions

Applications

• Inverter welding power supplies
• Telecommunication power supplies
• Various switching power supply systems

Procurement Notes

Verify the specific part number suffix against official documentation to confirm voltage ratings, as variants exist within the series. Confirm compliance requirements such as RoHS status directly with the manufacturer or authorized distributors before procurement. Ensure that thermal interface materials and mounting hardware meet the specified torque values to maintain reliable operation and proper heat dissipation during installation.

Selection Notes

Select this component when high-speed switching performance and isolation are required in power conversion circuits. The 1200 V rating suits medium-voltage applications, while the 200 A current capacity supports substantial load demands. Evaluate thermal impedance and cooling requirements to ensure the junction temperature remains within the specified operational limits under continuous and surge loading conditions.

Part Context

This module belongs to the FRS series of fast recovery diodes manufactured by SanRex Corporation. The series is engineered for discrete semiconductor modules used in power electronics. The FRS200CA120 variant specifically addresses the need for high voltage blocking capabilities combined with rapid recovery characteristics, distinguishing it from standard rectifier modules in terms of switching speed and efficiency.

Replacement Considerations

Consult official datasheets for cross-reference information. Verify that any substitute component matches the 1200 V reverse voltage, 200 A current rating, and 350 ns reverse recovery time specifications. Ensure physical dimensions, terminal configurations, and isolation voltage ratings are compatible with the existing circuit board layout and mounting constraints.
