Product Detailed Parameters
- Description：IGBT MOD 1200V 100A 515W
- Series：EconoPACK™ 3
- Mfr：Infineon Technologies
- Package：Bulk,Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：2.2V @ 15V, 100A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：100 A
- Power - Max：515 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：6.3 nF @ 25 V
Download product information
Overview

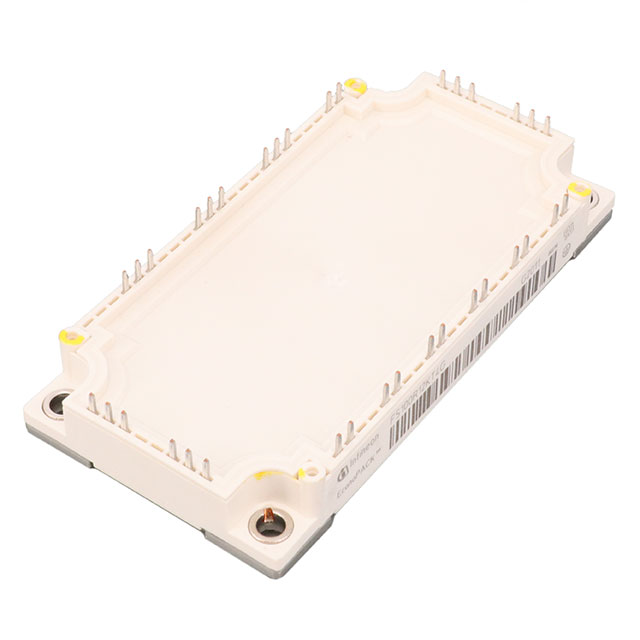

The FS100R12KT4GBOSA1 is a six-pack IGBT module from Infineon's TRENCHSTOP™ IGBT4 series, housed in an EconoPACK™ 3 package with PressFIT technology. It features a collector-emitter voltage of 1200 V and a continuous DC collector current of 100 A at 25°C. The typical saturation voltage is 1.75 V at 25°C, rising to 2.10 V at 150°C. Switching losses are optimized for low dissipation, with turn-on energy at 4 mJ and turn-off energy at 5.5 mJ under standard test conditions. An integrated NTC thermistor provides thermal monitoring.
Feature Summary
- Utilizes Trenchstop IGBT4 technology for reduced switching losses and positive temperature coefficient characteristics.
- Features a copper base plate and PressFIT contact technology for high power cycling capability.
- Includes an integrated NTC temperature sensor for reliable thermal management.
Applications
- Auxiliary inverters
- Motor drives
- Servo drives
Procurement Notes
Verify the specific ordering suffix BOSA1 against official documentation to confirm packaging or variant details. Confirm RoHS compliance status through the manufacturer's latest release notes. Ensure compatibility with recommended gate drivers listed in the official finder tool before procurement.
Selection Notes
Select this module for industrial applications requiring robust thermal cycling performance. Verify that the operating junction temperature remains within the specified -40°C to 150°C range. Ensure the PCB hole pattern matches the PressFIT pin specifications provided in the application notes.
Part Context
This component belongs to the Infineon EconoPACK™ 3 family, designed for compact power conversion systems. It utilizes silicon-based IGBT4 technology, offering a balance between conduction and switching efficiency suitable for medium-power industrial electronics.
Replacement Considerations
FS100R12KT4G
FAQ
What is the maximum repetitive peak collector current?
The maximum repetitive peak collector current (ICRM) is 200 A, limited by the operating junction temperature.
Does the module include thermal protection components?
Yes, it includes an integrated NTC thermistor with a rated resistance of 5 kΩ at 25°C for temperature monitoring.
What is the isolation test voltage rating?
The isolation test voltage (VISOL) is 2.5 kV RMS for 1 minute at 50 Hz.
