Product Detailed Parameters
- Description：LOW POWER EASY AG-EASY3B-711
- Series：*
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：-
- Configuration：-
- Vce(on) (Max) @ Vge, Ic：-
- Input：-
- NTC Thermistor：-
- Operating Temperature：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Voltage - Collector Emitter Breakdown (Max)：-
- Current - Collector (Ic) (Max)：-
- Power - Max：-
- Current - Collector Cutoff (Max)：-
- Input Capacitance (Cies) @ Vce：-
Download product information
Overview

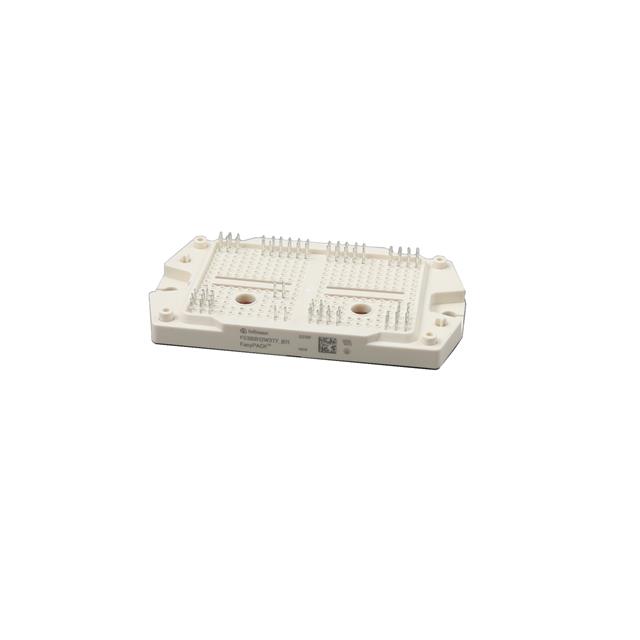

The FS100R12W3T7B11BPSA1 is a six-pack IGBT module from Infineon Technologies, utilizing TRENCHSTOP™ IGBT7 technology. It features a collector-emitter voltage of 1200 V and a nominal continuous DC collector current of 100 A at 25°C, with a repetitive peak current capability of 200 A. The module integrates emitter-controlled diodes and an NTC temperature sensor within an EasyPACK™ package. Key electrical parameters include a typical saturation voltage of 1.5 V and forward voltage of 1.72 V at 25°C. It supports operation up to a junction temperature of 175°C and utilizes PressFIT contact technology for mounting.
Feature Summary
- Integrates TRENCHSTOP™ IGBT7 technology with low saturation voltage characteristics
- Includes an integrated NTC thermistor for precise thermal monitoring
- Utilizes PressFIT contact technology for reliable connection without soldering
- Features an Al2O3 substrate providing low thermal resistance and high insulation
Applications
- Auxiliary inverters
- Motor drives
- Servo drives
Procurement Notes
Verify the specific ordering suffix B11 against official documentation to confirm exact configuration details. Ensure that the procurement channel provides valid traceability documents. Confirm compliance with industrial qualification standards such as IEC 60747 and IEC 60068 prior to integration into final designs.
Selection Notes
Select this module for applications requiring robust overload capabilities up to 175°C junction temperature. Consider the low stray inductance of 15 nH for high-speed switching environments. Evaluate the thermal resistance values relative to the heatsink design to ensure adequate heat dissipation under continuous load conditions.
Part Context
This component belongs to the EasyPACK™ series manufactured by Infineon Technologies. It is part of the broader TRENCHSTOP™ IGBT7 product family designed for industrial power electronics. The module is specifically engineered for high-efficiency power conversion systems requiring compact packaging and reliable performance.
Replacement Considerations
Consult official Infineon substitution guides for verified alternatives. Cross-reference technical specifications including voltage ratings, current capacities, and package dimensions before considering any substitute components.
FAQ
What is the maximum operating junction temperature?
The module supports operation up to a junction temperature of 175°C.
Does the module include thermal protection features?
Yes, it includes an integrated NTC thermistor for temperature monitoring.
What type of contact technology is used?
The module uses PressFIT contact technology for mounting.
