FS200R12W3T7B11BPSA1

Overview

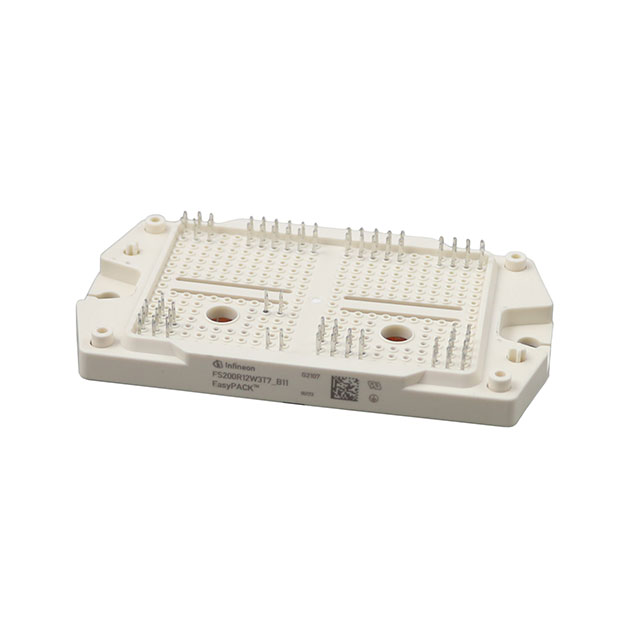

The FS200R12W3T7B11BPSA1 is a six-pack IGBT module from Infineon Technologies, utilizing TRENCHSTOP™ IGBT7 technology. It features a collector-emitter voltage (VCES) of 1200 V and a nominal continuous DC collector current (ICDC) of 200 A at a junction temperature of 175 °C. The module incorporates emitter-controlled diodes with a forward voltage (VF) of 1.72 V at 25 °C. Electrical characteristics include a typical saturation voltage (VCE,sat) of 1.55 V and an internal gate resistance of 0.75 Ω. Thermal management is supported by an Al2O3 substrate and copper base plate, providing a thermal resistance (RthJH) of 0.331 K/W for the IGBTs. The package includes an integrated NTC thermistor rated at 5 kΩ.

Feature Summary

• Utilizes seventh-generation TRENCHSTOP™ IGBT7 micro-pattern trench technology for optimized controllability and reduced switching losses in industrial drive applications.
• Features PressFIT contact technology to eliminate solder joints, enhancing mechanical robustness and thermal cycling capability.
• Includes an integrated NTC temperature sensor for precise monitoring of module operating conditions.
• Constructed with an Al2O3 substrate and copper base plate to ensure low thermal resistance and high power density.

Applications

• Motor drives
• Servo drives
• Auxiliary inverters

Procurement Notes

Verify component authenticity through official Infineon channels or authorized distributors. Confirm that the ordering suffix matches the required specifications exactly. Ensure compliance with industrial qualification standards such as IEC 60747, 60749, and 60068 before integration into final equipment designs.

Selection Notes

Select this module for applications requiring high current handling up to 200 A and operation at elevated temperatures up to 175 °C. Consider the specific thermal resistance values and mounting torque requirements when designing the heatsink interface. Ensure gate driver compatibility with the internal gate resistance and recommended external gate resistor values for optimal switching performance.

Part Context

This component belongs to the EasyPACK™ series of power modules, specifically designed for industrial applications. It represents the integration of Infineon's advanced IGBT7 technology within a standardized mechanical footprint, facilitating design reuse across various power electronics platforms while delivering improved efficiency compared to previous generations.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify pinout compatibility and electrical ratings if considering alternative manufacturers. Consult Infineon technical support for validated cross-reference information.

FAQ

What is the maximum repetitive peak collector current for this module?

The maximum repetitive peak collector current (ICRM) is 400 A for a pulse duration of 1 ms.

Does the module include protection against short circuits?

Yes, the datasheet provides short-circuit withstand time data, indicating it can withstand short circuits for up to 7 µs at a junction temperature of 175 °C with a short-circuit current of 600 A.

What is the isolation test voltage rating?

The isolation test voltage (VISOL) is 2.5 kV RMS for 1 minute at 50 Hz.
