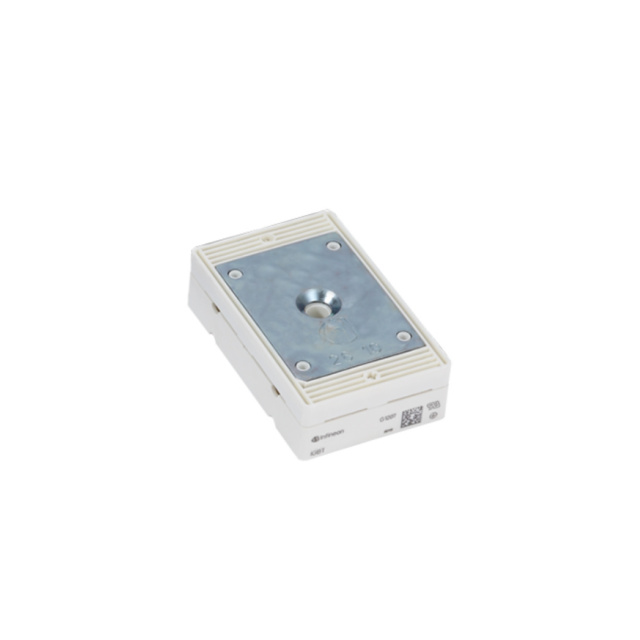

FS75R07U1E4BPSA1

Description：IGBT MOD 650V 100A 275W
Series：SmartPACK1

SKU:43b364df7400 Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MOD 650V 100A 275W
Series：SmartPACK1
Mfr：Infineon Technologies
Package：Tray
IGBT Type：Trench Field Stop
Configuration：Full Bridge
Vce(on) (Max) @ Vge, Ic：1.95V @ 15V, 75A
Input：Standard
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 150°C
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Voltage - Collector Emitter Breakdown (Max)：650 V
Current - Collector (Ic) (Max)：100 A
Power - Max：275 W
Current - Collector Cutoff (Max)：1 mA
Input Capacitance (Cies) @ Vce：4.6 nF @ 25 V

Download product information

FS75R07U1E4BPSA1

Overview

The FS75R07U1E4BPSA1 is a SmartPACK1 IGBT module featuring Trench/Fieldstop IGBT4 technology and an Emitter Controlled Diode. It provides a collector-emitter voltage of 650 V, with continuous DC collector currents rated at 75 A (TC=80°C) or 100 A (TC=25°C), and a repetitive peak current of 150 A. The module utilizes PressFIT contact technology and includes an integrated NTC thermistor for thermal monitoring. Key electrical parameters include a maximum total power dissipation of 275 W at TC=25°C, a gate-emitter peak voltage of +/-20 V, and a junction temperature range from -40°C to 150°C.

Feature Summary

Trench/Fieldstop IGBT4 technology combined with an Emitter Controlled Diode
High short-circuit capability with self-limiting short-circuit current
PressFIT connection technology for robust assembly
Integrated NTC thermistor for reliable thermal monitoring

Applications

Air Conditioning systems
Motor Drives
Servo Drives
UPS Systems

Procurement Notes

Verify the component status as discontinued before initiating any procurement activities. Confirm that the specific ordering suffix matches the required technical specifications and package configuration. Ensure compatibility with existing system designs given the end-of-life status. Request updated documentation or alternative part numbers if long-term supply continuity is required for production planning.

Selection Notes

Select this module for applications requiring 650 V blocking capability and high short-circuit robustness. Consider the 75 A continuous current rating at elevated case temperatures when designing thermal management solutions. Verify that the circuit design accommodates the specified switching losses and stray inductance values. Ensure the mounting torque adheres to the manufacturer's guidelines for the M6 screws to maintain proper mechanical stability.

Part Context

This component belongs to Infineon's SmartPACK1 series, designed for compact power conversion applications. It integrates Trench/Fieldstop IGBT4 technology with an Emitter Controlled Diode to optimize switching performance. The module features PressFIT technology and an integrated NTC thermistor for enhanced reliability and thermal management in industrial power electronics.
