FSLM2520-R15J=P2

Overview

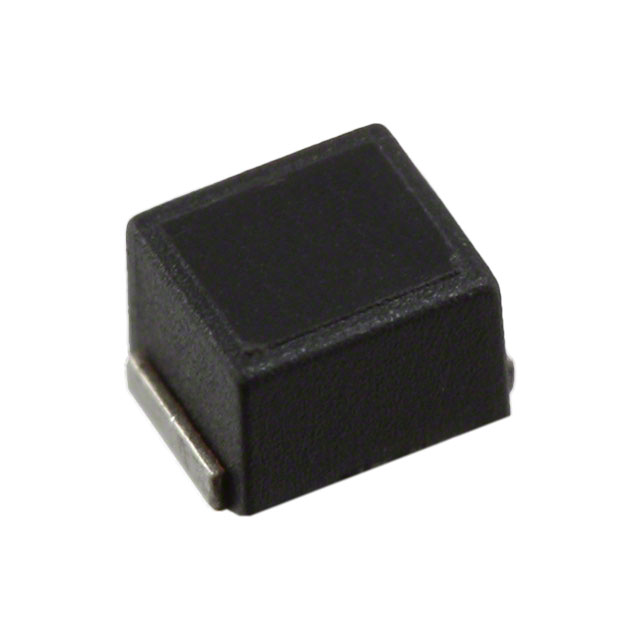

The Toko America Inc. FSLM2520-R15J=P2 is a wirewound chip inductor with an inductance of 150 nH and a maximum DC current rating of 500 mA. It features a compact 2520 package size (2.5 x 2 mm) and a height of approximately 1.7 mm. The component has a maximum DC resistance of 250 mΩ and operates within a temperature range of -40°C to +85°C.

Feature Summary

• Utilizes a wirewound construction for stable inductance performance
• Encapsulated in a compact surface-mount package for automated assembly
• Designed for high-frequency applications requiring low inductance values

Applications

• RF circuits and signal processing
• Power supply filtering stages
• General-purpose electronic equipment

Procurement Notes

Verify the discontinued status of this part number before procurement planning. Confirm availability through authorized distributors or secondary markets, as standard production may have ceased. Ensure that any replacement components meet the same electrical specifications and physical dimensions to maintain circuit integrity without redesign.

Selection Notes

Select this component for designs requiring a 150 nH inductance with a 500 mA current handling capability. The 2520 footprint suits space-constrained layouts. Consider the 250 mΩ DCR for efficiency calculations. Verify RoHS compliance if required by specific regulatory standards for the target market.

Part Context

This inductor belongs to the FSLM2520 series from Toko America Inc., which offers various inductance values within the 2520 package. The series is characterized by wirewound technology and molded construction, providing shielding and mechanical protection. This specific model represents the lowest inductance option in the available catalog data for this form factor.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. As the component is listed as discontinued, engineers must identify equivalent parts based on matching inductance, current rating, DCR, and package dimensions from other manufacturers.
