FSLU2520-8R2JP2

Overview

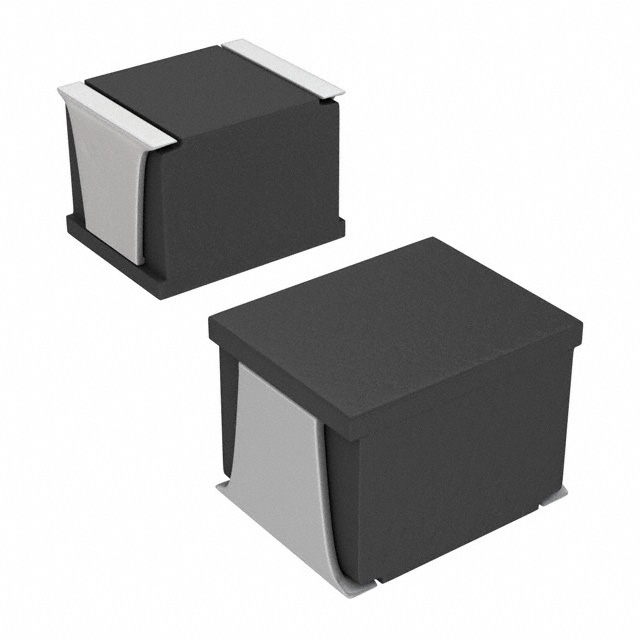

The FSLU2520-8R2JP2 is a fixed surface-mount inductor from the LLM/FSLU series, manufactured by Toko America Inc. (Murata). It features an 8.2 µH nominal inductance with a ±5% tolerance. The component has a maximum DC resistance of 2.9 Ω and a rated current of 160 mA. It utilizes a wire-wound structure within a rectangular 2520 package, designed for signal processing applications.

Feature Summary

• Wire-wound construction for stable inductance characteristics
• Rectangular SMD package optimized for high-density mounting
• RoHS compliant manufacturing process

Applications

• RF signal processing circuits
• General purpose filtering applications
• High-density electronic device assembly

Procurement Notes

Verify the specific ordering suffix against official Murata/Toko documentation to confirm tolerance and packaging specifications. Ensure the part number matches the required inductance value and current rating for the target circuit design before procurement.

Selection Notes

Select this component based on its 8.2 µH inductance and 160 mA current handling capability. Consider the 2.9 Ω DC resistance for power loss calculations. Verify compatibility with standard reflow soldering profiles and ensure the 2520 footprint fits the PCB layout constraints.

Part Context

This inductor belongs to the LLM/FSLU family of chip inductors produced by Toko America Inc., now part of Murata Manufacturing. These components are widely used in consumer electronics and industrial equipment requiring compact passive magnetic solutions for noise suppression and energy storage.

Replacement Considerations

Direct substitutes include other 8.2 µH, 160 mA, 2520 package wire-wound inductors from manufacturers such as TDK or Murata's own DFE series, provided electrical parameters and thermal ratings match.
