FSRH030060RNB00B

Overview

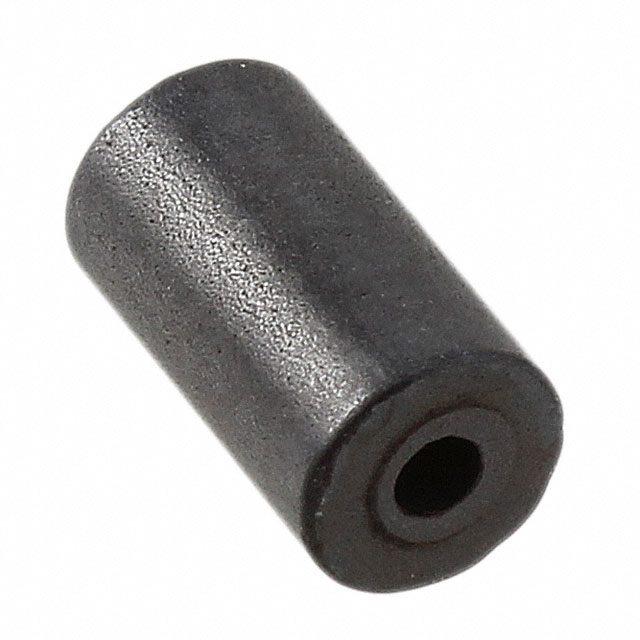

The Murata FSRH030060RNB00B is a solid ferrite cable core designed for electromagnetic interference suppression. It features an impedance of 74 ohms at 100 MHz and operates within a frequency range of 100 kHz to 1 GHz. The component has an inner diameter of 1.1 mm, an outer diameter of 3.0 mm, and an external length of 6.0 mm. Constructed from RN material, it is suitable for flat ribbon cables.

Feature Summary

• Provides high impedance to suppress electromagnetic interference in the specified frequency range
• Solid construction ensures stable performance for cable applications
• Compatible with standard flat ribbon cable geometries

Applications

• Electromagnetic interference suppression on flat ribbon cables
• Signal integrity enhancement in data transmission lines
• Common mode noise reduction in electronic assemblies

Procurement Notes

Verify part authenticity through authorized channels as this component may be obsolete. Confirm dimensional compatibility with existing cable harnesses before integration. Check RoHS compliance status against current regulatory requirements for your specific market region.

Selection Notes

Select this component when a 74-ohm impedance at 100 MHz is required for noise suppression. Ensure the cable bundle fits within the 1.1 mm inner diameter constraint. Consider the RN material properties for temperature stability in the intended operating environment.

Part Context

This part belongs to the Murata FSRH series of ferrite cable cores. These components are distinct from surface-mount beads, offering a free-hanging solution for wire and cable management. The series provides various impedance values and dimensions to suit different cable sizes and noise profiles.

Replacement Considerations

Public confirmed substitute part numbers: None identified.
