FSRH044040RNB00B

Overview

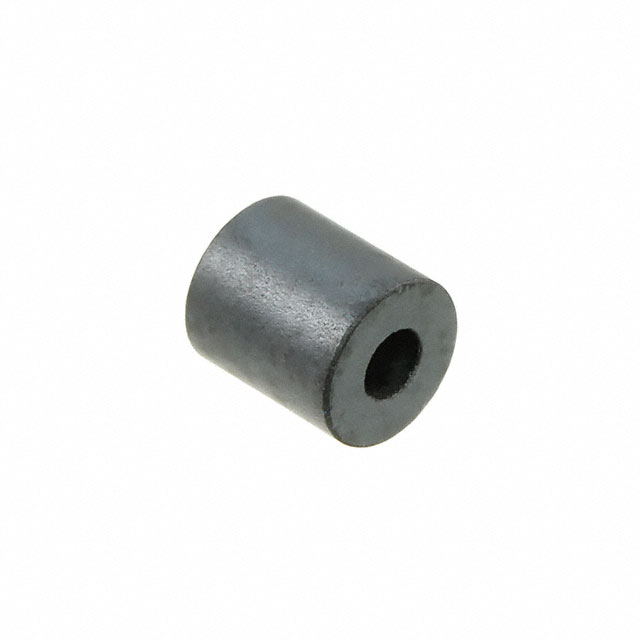

The Murata Electronics FSRH044040RNB00B is a solid ferrite cable core designed for flat ribbon cables. It provides an impedance of 50 Ohms at a test frequency of 100 MHz, operating within the 100 kHz to 1 GHz range. The component features an inner diameter of 1.5 mm, an outer diameter of 3.6 mm, and an external length of 4.00 mm. Constructed from RN material, it weighs approximately 210 mg and is supplied in bulk packaging.

Feature Summary

• Solid design suitable for free-hanging installation on flat ribbon cables
• RN material composition for effective noise suppression
• Impedance specification of 50 Ohms at 100 MHz

Applications

• Noise suppression on flat ribbon cables
• EMI filtering in electronic assemblies
• Signal integrity enhancement in high-frequency circuits

Procurement Notes

This component is classified as obsolete or end-of-life by the manufacturer. Verification of availability through secondary distributors is required. Confirm RoHS compliance status and exact manufacturing date codes prior to procurement, as supply chain continuity is not guaranteed for discontinued parts.

Selection Notes

Select this part when a 50 Ohm impedance at 100 MHz is required for flat ribbon cables with a 1.5 mm inner diameter. Ensure the application environment supports the RN material properties. Verify that the physical dimensions (3.6 mm OD, 4.00 mm length) fit the available space constraints in the target assembly.

Part Context

Part of the FSRH series of solid ferrite cores manufactured by Murata Electronics. This series focuses on providing reliable EMI suppression solutions for various cable types, specifically optimized for flat ribbon configurations in consumer and industrial electronics.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Due to the obsolete status, alternative components must be selected based on matching electrical impedance, physical dimensions, and material characteristics.
