FSV2060L

Single Diodes Overview

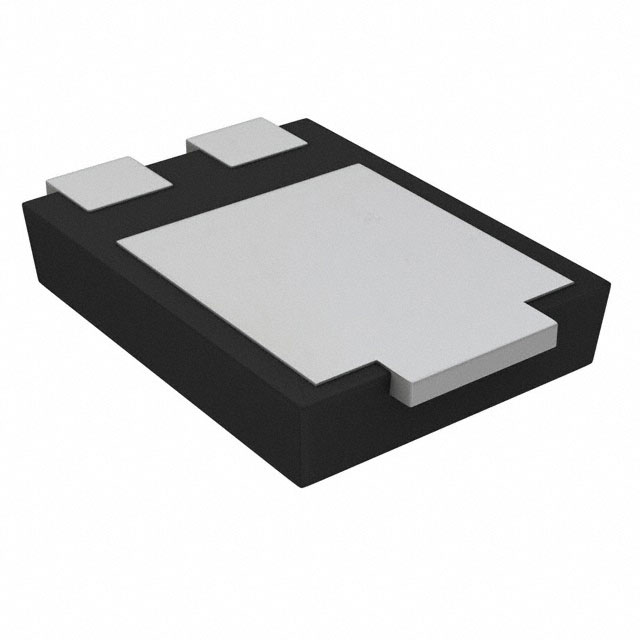

The FSV2060L is a Schottky Rectifier rated for 20 A average forward current and 60 V peak repetitive reverse voltage. It utilizes a TO-277-3LD (CASE 340BQ) surface-mount package with a typical height of 1.1 mm. The device features very low forward voltage drop, reaching a maximum of 600 mV at 20 A, and operates within a junction temperature range of -55°C to +150°C. It is qualified for reflow soldering up to 260°C and complies with EU RoHS 2011/65/EU directives.

Single Diodes Feature Summary

• Very low forward voltage drop for improved efficiency
• Low thermal resistance for effective heat dissipation
• Very low profile construction suitable for space-constrained designs
• Qualified for high-temperature reflow and solder processes

Single Diodes Applications

• DC-DC converters
• Power supply rectification
• Free-wheeling diodes in switching circuits

Single Diodes Procurement Notes

Verify the specific ordering suffix matches the required shipping format, as the standard part number corresponds to tape and reel packaging containing 5000 units per reel. Confirm that the application environment remains within the specified absolute maximum ratings, particularly regarding the non-repetitive peak forward surge current limit of 320 A and the operating junction temperature range. Ensure PCB land patterns align with the thermal characteristics defined in the datasheet.

Single Diodes Selection Notes

Select this component when a surface-mount Schottky barrier rectifier with high current handling and low forward voltage is required. The TO-277-3LD package offers a compact footprint compared to traditional through-hole options while maintaining robust thermal performance. Consider the device's junction-to-ambient thermal resistance values based on the intended copper land pattern size to ensure adequate heat dissipation under continuous load conditions.

Single Diodes Part Context

This device belongs to the FSV series of Very Low VF Schottky Rectifiers manufactured by onsemi. The series provides solutions for applications demanding high efficiency and reliability in power conversion systems. The FSV2060L specifically addresses needs for moderate voltage blocking capabilities combined with substantial average current capacity in a modern surface-mount form factor.

Single Diodes Replacement Considerations

Consult official cross-reference documentation or manufacturer substitution guides for verified equivalent part numbers. Do not assume functional compatibility with other Schottky rectifiers without verifying electrical parameters such as forward voltage, reverse leakage, and thermal resistance against the original design requirements.
