FT10301N0050JBK

Overview

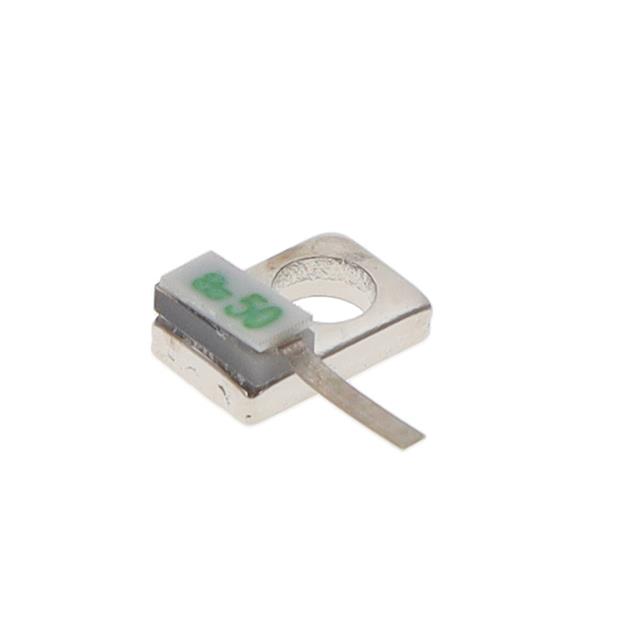

The FT10301N0050JBK is a high-frequency RF resistor from the KYOCERA AVX FT1 series. It features a resistance of 50 Ohms with a 5% tolerance and a power rating ranging from 1W to 250W. The component operates within a frequency range of 0Hz to 6GHz. It utilizes Glass Sandwich Flexiterm technology for thermal management.

Feature Summary

• Utilizes Glass Sandwich Flexiterm technology for enhanced thermal performance
• Designed for high-reliability applications in demanding environments
• Supports wide power handling capabilities suitable for RF termination

Applications

• 5G infrastructure systems
• LTE communication modules
• High-reliability RF circuit termination

Procurement Notes

Verify the specific power rating configuration required for your application, as the series supports a wide range up to 250W. Confirm that the 0Hz to 6GHz frequency specification aligns with your system requirements. Ensure compatibility with the Glass Sandwich Flexiterm construction for proper thermal dissipation in your design.

Selection Notes

Select this component when requiring a robust RF termination with high power handling and wide frequency coverage. The FT1 series offers stability for critical signal paths. Consider the physical dimensions and mounting style relative to your PCB layout constraints. Validate thermal performance under maximum load conditions.

Part Context

This part belongs to the FT1 series of high-frequency resistors manufactured by KYOCERA AVX. The series is characterized by its use of advanced materials to handle significant power levels while maintaining electrical integrity at radio frequencies. It serves as a termination solution for RF signals.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
