FT10302N0050JBK

Overview

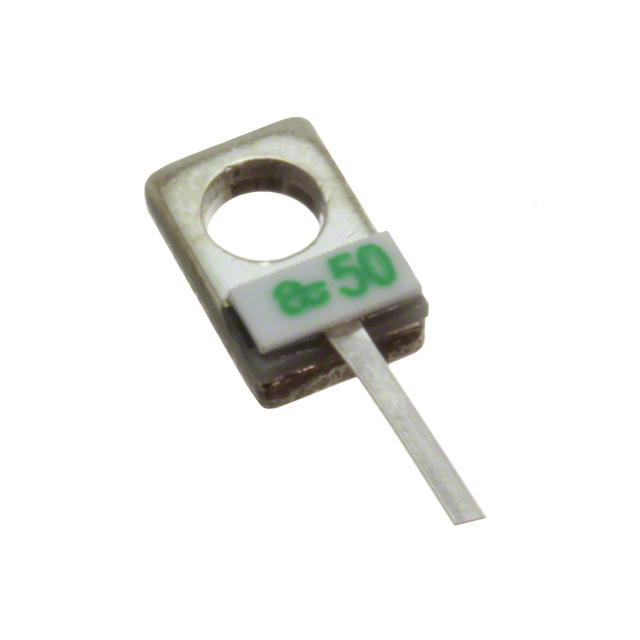

The FT10302N0050JBK is a high-frequency RF termination resistor manufactured by KYOCERA AVX. It features a flange mount package type with a thin film resistive element on an AlN substrate. The component provides a nominal resistance of 50 Ohms with a tolerance of 5%. It operates across a frequency range from 0 Hz to 18 GHz, ensuring stable performance in broadband applications. The device is designed for reliable signal termination in RF circuits.

Feature Summary

• Flange mount construction for secure mechanical attachment and thermal management
• Thin film resistive element deposited on an Aluminum Nitride (AlN) substrate
• Broadband operational capability extending from DC to 18 GHz

Applications

• RF signal termination in communication systems
• High-frequency test and measurement equipment
• Microwave circuit impedance matching networks

Procurement Notes

Verify the specific manufacturer part number FT10302N0050JBK against official KYOCERA AVX documentation to confirm technical specifications. Ensure that the required flange mount configuration and 50 Ohm impedance align with your design requirements. Cross-reference datasheets for precise dimensional tolerances and thermal characteristics before finalizing procurement decisions.

Selection Notes

Select this component when a robust, flange-mounted RF termination is required for frequencies up to 18 GHz. The AlN substrate offers favorable thermal properties compared to other materials. Consider the physical mounting constraints associated with the flange style and ensure the 5% tolerance meets the precision needs of the specific RF application environment.

Part Context

This component belongs to the family of RF terminations produced by KYOCERA AVX, which are engineered for high-reliability microwave and radio frequency applications. These devices typically utilize thin-film technology on ceramic substrates to maintain consistent impedance characteristics over wide bandwidths, serving as critical passive elements in signal integrity management.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data. Consult official manufacturer catalogs or authorized distributor databases for equivalent flange-mount RF terminations with matching 50 Ohm impedance and 18 GHz frequency ratings.
