FT1MHUPM26.0-T1

Oscillators Overview

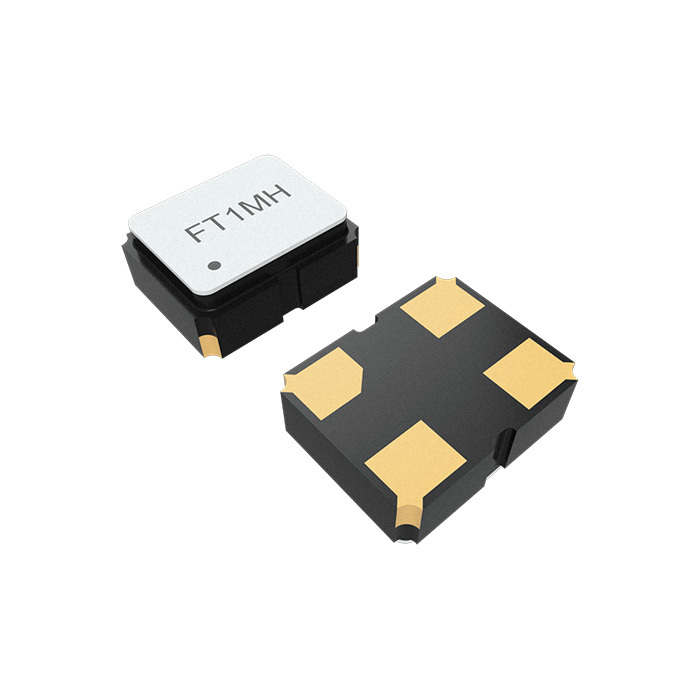

The FT1MHUPM26.0-T1 is a temperature-compensated crystal oscillator (TCXO) manufactured by Fox Electronics, operating at a nominal frequency of 26 MHz with a stability of 2.5 ppm. It utilizes CMOS output logic and functions within a supply voltage range of 1.68V to 3.63V, featuring a standby mode for power management. The device is housed in a compact 4-SMD, no-lead package measuring 2mm x 1.6mm. It supports an operating temperature range from -40°C to +85°C and complies with RoHS standards, ensuring environmental safety for modern electronic assemblies.

Oscillators Feature Summary

• Integrated temperature compensation ensures frequency stability across varying thermal conditions
• CMOS output interface provides compatibility with standard digital logic circuits
• Low-voltage operation with dedicated standby mode for enhanced energy efficiency
• Compact surface-mount footprint designed for high-density PCB layouts

Oscillators Applications

• Wireless communication modules requiring precise clock synchronization
• Portable consumer electronics utilizing low-power microcontrollers
• Industrial control systems operating in variable temperature environments
• IoT devices demanding stable timing references with minimal power consumption

Oscillators Procurement Notes

Verify the specific ordering suffix matches the required frequency tolerance and load capacitance specifications. Confirm that the supply voltage requirements align with the target system's power rails, particularly noting the standby functionality. Ensure the 2mm x 16mm package dimensions fit within the designated PCB silkscreen area. Check for RoHS compliance documentation if environmental regulations apply to the final product assembly.

Oscillators Selection Notes

Select this component when a balance between size constraints and frequency accuracy is critical. The 2.5 ppm stability suits applications where moderate drift is acceptable without complex calibration. Consider the CMOS output level against the input requirements of the downstream circuitry. Evaluate the power consumption in both active and standby modes relative to battery life expectations for portable designs.

Oscillators Part Context

This part belongs to the FT1MH series of TCXOs from Fox Electronics, which focuses on small-form-factor oscillators. The series is engineered for applications needing reliable timing in space-constrained environments. Fox Electronics integrates these components into broader frequency control solutions, often supporting industries like telecommunications and automotive electronics with standardized packaging options.

Oscillators Replacement Considerations

Direct substitutes must match the 26 MHz frequency, 2.5 ppm stability, and 2mm x 1.6mm SMD package. Verify equivalent CMOS output characteristics and compatible voltage ranges. Cross-reference pinout configurations to ensure electrical connectivity remains unchanged during replacement.
