Product Detailed Parameters
- Description：RF FILTER LOW PASS 174MHz
- Series：FT220406
- Mfr：Sevskiy GmbH
- Package：Bulk
- Frequency：174MHz (Cutoff)
- Bandwidth：-
- Filter Type：Low Pass
- Ripple：0.5dB
- Insertion Loss：0.75dB
- Mounting Type：Free Hanging (In-Line)
- Package / Case：Inline, SMA Connection, F and M
- Size / Dimension：0.519" L x 1.023" W (13.20mm x 26.00mm)
- Height (Max)：0.039" (1.00mm)
Download product information
Overview

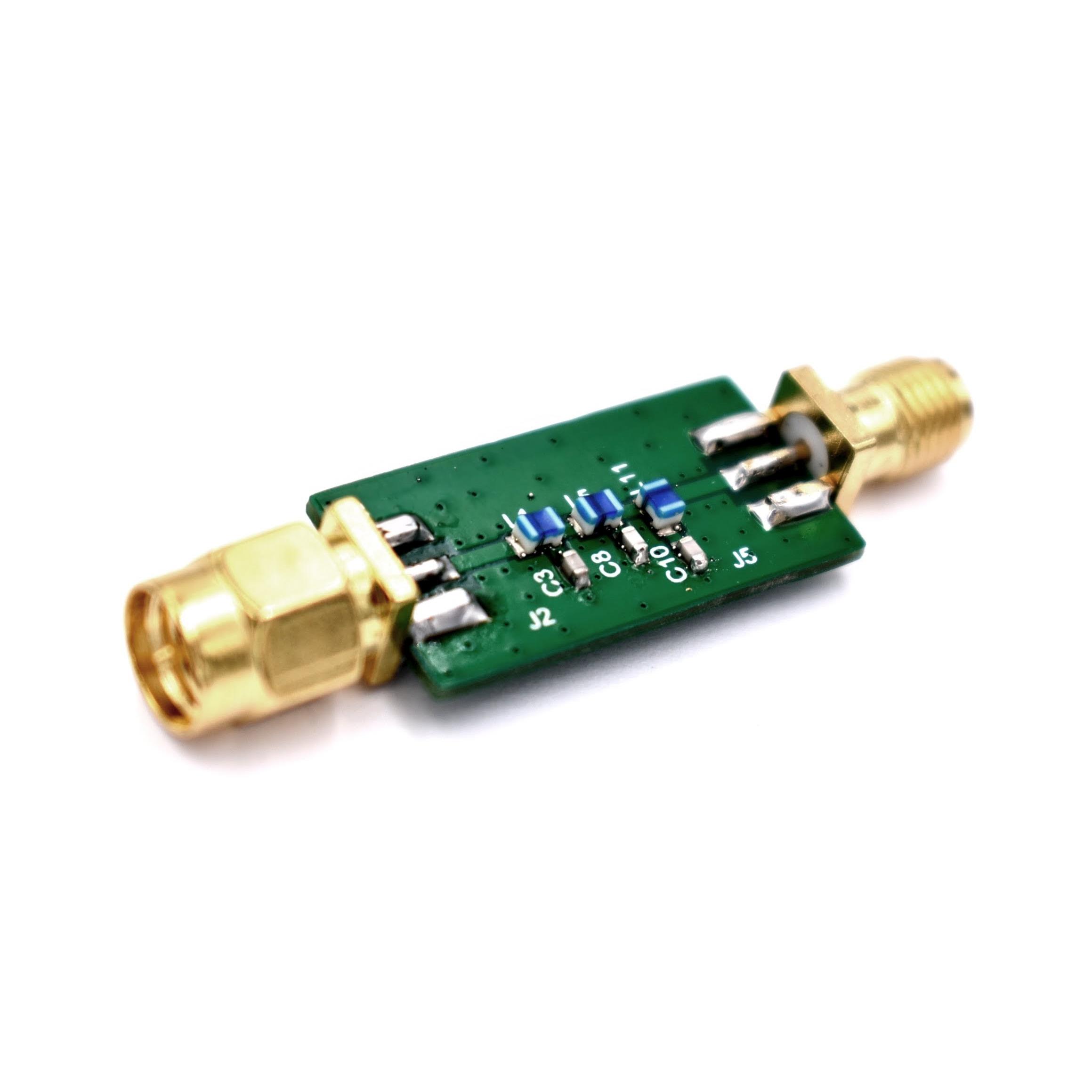

The FT220412-01A is a low-pass filter manufactured by Sevskiy GmbH, designed for RF applications with a cutoff frequency of 174 MHz. It features an inline mounting type with SMA connections, providing both F and M interfaces for mechanical and thermal shielding. The component exhibits an insertion loss of 0.75 dB and a ripple of 0.5 dB, ensuring efficient signal transmission within its operational bandwidth.
Feature Summary
- Low-pass filter configuration optimized for specific frequency ranges
- Inline mounting design with SMA connectors for secure integration
- Provides mechanical and thermal shielding through enclosure structure
Applications
- RF signal filtering in communication systems
- Integration into devices requiring low-pass frequency control
- Applications utilizing SMA connector interfaces for signal integrity
Procurement Notes
Verify the specific SMA connector gender (F or M) required for your system integration, as the datasheet indicates both are provided for mechanical and thermal shielding purposes. Confirm that the 174 MHz cutoff frequency aligns with your application's spectral requirements to ensure proper signal attenuation characteristics.
Selection Notes
Select this component when a low-pass filter with a 174 MHz cutoff is required. Consider the inline mounting style and SMA connectivity for ease of installation. Ensure the 0.75 dB insertion loss meets your system's power budget constraints.
Part Context
Sevskiy GmbH specializes in RF and antenna development, offering customized solutions for high-frequency technology. This filter is part of their portfolio aimed at providing reliable RF components for various industrial and communication applications, leveraging their expertise in RF design optimization.
Replacement Considerations
No direct substitute part numbers are publicly confirmed in the available documentation. Users should consult Sevskiy GmbH directly for potential alternatives or custom modifications if the FT220412-01A does not meet specific project requirements.
