FT2CNDRK26.0-BULK

Oscillators Overview

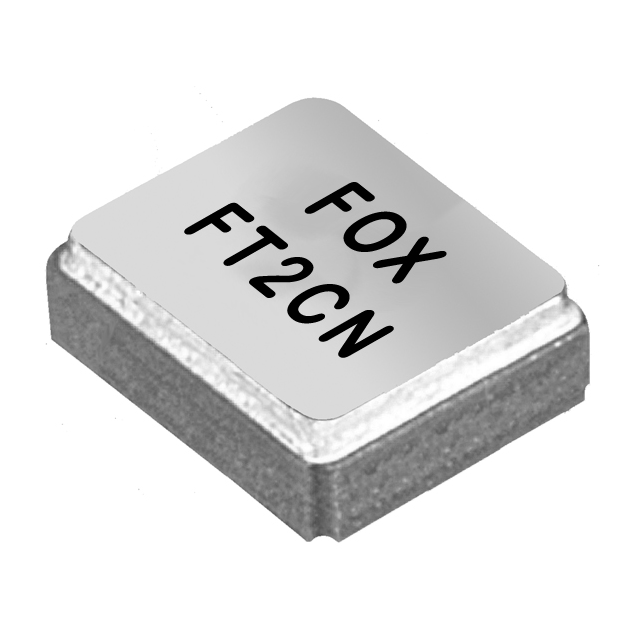

The Fox Electronics FT2CNDRK26.0-BULK is a Temperature Compensated Crystal Oscillator (TCXO) operating at a standard frequency of 26MHz. It utilizes a surface-mount device (SMD) package with dimensions of 2.0mm x 1.6mm x 0.8mm. The component supports a supply voltage range of 1.7V to 3.3V, with the specific suffix indicating a 3.0V nominal operation. It features an LVCMOS output type and offers frequency stability options including ±2ppm and ±2.5ppm across the industrial temperature range of -30°C to +85°C. The device is designed for low power consumption, drawing approximately 2mA at higher frequencies.

Oscillators Feature Summary

• Compact 2.0x1.6mm SMD footprint suitable for space-constrained designs
• Low power consumption optimized for battery-operated applications
• High frequency stability with ±2ppm or ±2.5ppm temperature compensation
• Wide supply voltage compatibility from 1.7V to 3.3V

Oscillators Applications

• Handheld radio terminals and portable communication devices
• Global Positioning System (GPS) modules requiring precise timing
• High-precision analog-to-digital converter clock sources
• Wearable electronic devices with strict size limitations

Oscillators Procurement Notes

Verify the exact frequency stability grade required for your application, as the base model may offer different ppm tolerances. Confirm the output voltage level matches your downstream logic interface. Ensure proper decoupling capacitor placement near the VDD pin to maintain signal integrity and minimize phase noise performance during operation.

Oscillators Selection Notes

Select this component when a small form factor is critical alongside high frequency accuracy. It serves as a direct upgrade for standard crystals in systems requiring reduced frequency drift over temperature variations. Consider the power budget carefully, as current draw varies slightly with frequency selection within the supported range.

Oscillators Part Context

This oscillator belongs to the Fox Electronics FT1CN/FT2CN series of miniature TCXOs. These components are engineered to replace larger traditional oscillators in modern compact electronics. The series provides a balance of size, power efficiency, and stability, addressing the needs of increasingly miniaturized wireless and sensing technologies.

Oscillators Replacement Considerations

Direct substitutes include other Fox Electronics models within the same FT1CN/FT2CN family with matching 26MHz frequency and compatible package dimensions. Cross-brand replacements must verify identical 2.0x1.6mm footprint, 3.0V supply compatibility, and equivalent ±2ppm stability specifications.
