FT2MNTUM-32.0-T1

Oscillators Overview

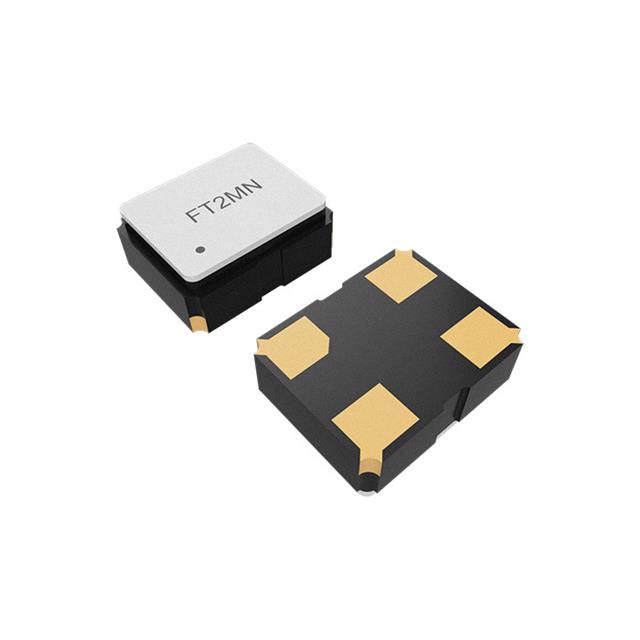

The FT2MNTUM-32.0-T1 is a temperature-compensated crystal oscillator (TCXO) from Fox Electronics, operating at a nominal frequency of 32 MHz. It features a clipped sine wave output and operates within a supply voltage range of 1.68V to 3.63V. The device utilizes a 4-SMD, no-lead surface-mount package with dimensions of 2.5mm x 2.0mm. It offers a typical frequency stability of 0.5 ppm over the specified temperature range.

Oscillators Feature Summary

• Temperature compensation for stable frequency performance across varying thermal conditions
• Compact surface-mount design suitable for space-constrained applications
• Wide supply voltage operation supporting low-power systems

Oscillators Applications

• Wireless communication modules requiring precise clock sources
• Portable electronic devices needing low power consumption
• Industrial control systems demanding frequency stability

Oscillators Procurement Notes

Verify the specific order code suffix against the manufacturer's current documentation to ensure correct voltage and tolerance specifications. Confirm that the 4-SMD no-lead package matches the PCB footprint requirements. Check for any recent revisions in the datasheet regarding recommended soldering profiles or storage conditions to maintain component integrity during assembly.

Oscillators Selection Notes

Select this component when a small form factor TCXO is required for 32 MHz applications. Ensure the system voltage falls within the 1.68V to 3.63V operational range. Consider the clipped sine wave output compatibility with downstream logic circuits. Evaluate the 0.5 ppm stability requirement against the environmental temperature extremes expected in the final application.

Oscillators Part Context

This part belongs to the FT2MN series of TCXOs from Fox Electronics. The series includes variants with different frequencies such as 30 MHz and 40 MHz, sharing similar physical dimensions and electrical characteristics. The FT2MNTUM-32.0-T1 specifically targets the 32 MHz market segment with its compact SMD packaging.

Oscillators Replacement Considerations

Direct substitutes include other Fox Electronics parts from the same FT2MN series with matching frequency and package. Cross-manufacturer replacements require verification of pinout, voltage range, and stability specifications.
