FT3CVDTM16.384-T3

Oscillators Overview

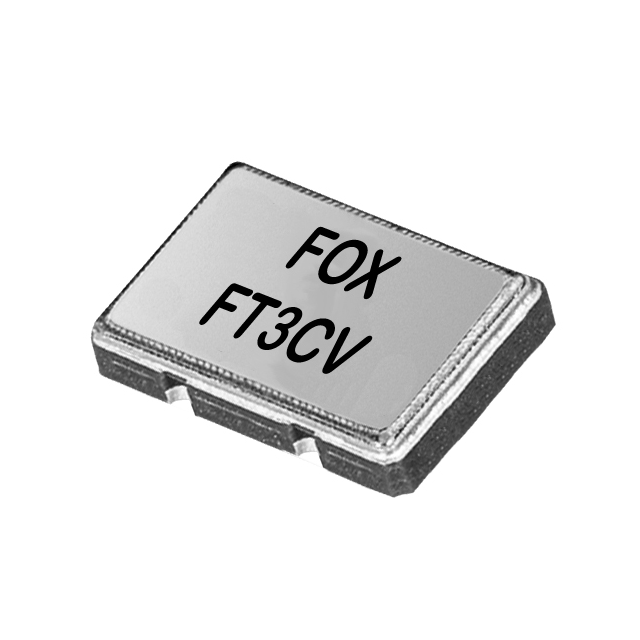

The FT3CVDTM16.384-T3 is a Temperature Compensated Crystal Oscillator (TCXO) manufactured by Fox Electronics, operating at a nominal frequency of 16.384 MHz. It utilizes a surface-mount package with dimensions of 2.5mm x 2.0mm and operates on a supply voltage of 3.0V. The device features an HCMOS output signal compatible with standard digital logic interfaces. Frequency stability is specified at ±1.5 ppm over the operating temperature range of -30°C to +85°C. The component is designed for applications requiring precise clock synchronization in compact electronic systems.

Oscillators Feature Summary

• Integrated temperature compensation circuitry ensures stable frequency output across varying thermal conditions.
• Compact surface-mount footprint facilitates automated assembly and space-constrained PCB layouts.
• HCMOS output interface provides robust signal integrity for direct connection to digital processing units.

Oscillators Applications

• GNSS timing and synchronization modules
• Portable test and measurement instruments
• Low-power wireless communication gateways

Oscillators Procurement Notes

Verify that the ordering suffix 'T3' corresponds to the required tape-and-reel quantity configuration for your manufacturing line. Confirm that the 3.0V supply voltage requirement aligns with your system's power architecture. Ensure the 2.5mm x 2.0mm package dimensions fit within the designated footprint on the printed circuit board. Check for RoHS compliance status if environmental regulations apply to your production region.

Oscillators Selection Notes

Select this component when high frequency stability is critical within a limited physical space. The ±1.5 ppm stability specification makes it suitable for precision timing applications where standard crystals may drift. Consider the 3.0V operating voltage to ensure compatibility with existing power rails. The HCMOS output simplifies design integration compared to oscillator types requiring additional buffering or level shifting circuits.

Oscillators Part Context

This model belongs to the FT3CV series of TCXOs from Fox Electronics, which are engineered for high-performance timing solutions. The series is commonly utilized in industrial and consumer electronics where size and accuracy are paramount. It serves as a direct replacement for previous generations of oscillators in designs requiring upgraded stability without increasing board space.

Oscillators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify pinout and electrical specifications before considering alternative manufacturers.
