FT3GNBUM30.0-T1

Oscillators Overview

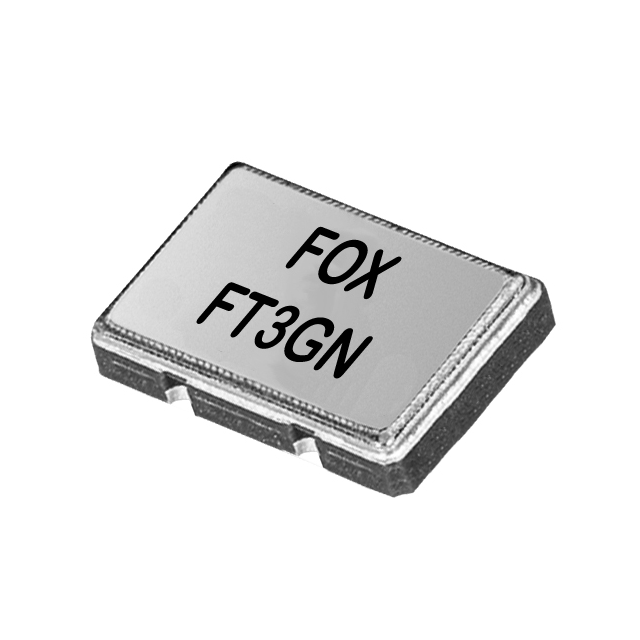

The FT3GNBUM30.0-T1 is a temperature-compensated crystal oscillator (TCXO) manufactured by Fox Electronics, operating at a nominal frequency of 30 MHz. It utilizes CMOS output logic and supports a supply voltage range of 1.68V to 3.63V. The device features a clipped sine wave output type and offers high frequency stability with a tolerance of ±0.5 ppm. Designed for surface mount applications, it is housed in a compact 4-SMD, no-lead package measuring 3.20mm x 2.50mm x 1.20mm maximum height. The component operates within an industrial temperature range of -40°C to +85°C and includes a standby function to minimize power consumption when disabled.

Oscillators Feature Summary

• Provides precise frequency generation with ±0.5 ppm stability for sensitive timing applications
• Supports low-voltage operation from 1.68V to 3.63V without requiring LDO regulators
• Features a compact 3.2mm x 2.5mm SMD footprint to conserve board space
• Includes a standby mode to extend battery life in portable devices

Oscillators Applications

• Global Positioning Systems (GPS)
• RF wireless communication modules
• WiMAX and Wi-Fi infrastructure
• Internet of Things (IoT) devices
• Vehicle tracking systems

Oscillators Procurement Notes

Verify the specific suffix 'BUM' against the official Fox Electronics datasheet to confirm the exact pinout configuration and electrical characteristics, as suffixes often denote critical variations in package or performance. Ensure the design accommodates the 4-SMD no-lead footprint dimensions of 3.20mm x 2.50mm. Confirm that the target application voltage falls within the 1.68V to 3.63V range to guarantee proper operation. Check for RoHS3 compliance requirements if environmental regulations apply to the final product assembly.

Oscillators Selection Notes

Select this component when high frequency stability of ±0.5 ppm is required alongside low power consumption. The FT3GNBUM30.0-T1 is suitable for designs needing a small form factor with a 3.2mm x 2.5mm outline. It is ideal for battery-operated equipment due to its low current draw and standby capability. Consider the CMOS output interface compatibility with the receiving circuitry. This model fits within the FTxMN series family, offering scalability for various wireless and IoT applications requiring reliable clock sources.

Oscillators Part Context

This part belongs to the FTxMN series of Temperature Compensated Crystal Oscillators from Fox Electronics. The series is characterized by analog peak-clipped sine wave outputs and low current consumption, making it distinct from standard square-wave oscillators. These components are engineered for wireless applications where board space and battery life are critical constraints. The FT3GNBUM30.0-T1 specifically represents a 30 MHz variant within this lineup, sharing common architectural benefits with other frequencies in the series while providing unique timing specifications for its designated application.

Oscillators Replacement Considerations

Compatible substitutes within the same series include FT3MNTUM30.0-T1 and FT2MNTUM30.0-T1, which share similar electrical profiles but may differ in package size or specific stability ratings. Verify that any replacement maintains the ±0.5 ppm stability and 30 MHz frequency. Ensure the alternative part supports the same 1.68V-3.63V supply range and CMOS output logic. Cross-reference the mechanical dimensions to ensure fitment on the existing PCB footprint.
