FT3HDBPH12.0-T1

Oscillators Overview

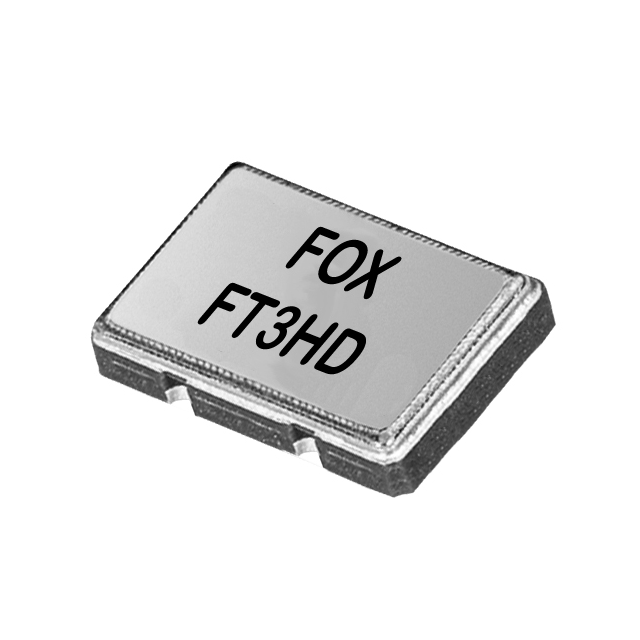

The FT3HDBPH12.0-T1 is a temperature-compensated crystal oscillator (TCXO) manufactured by Fox Electronics, designed for surface-mount applications. It operates at a nominal frequency of 12 MHz with HCMOS output logic levels. The device supports a supply voltage range of 1.68V to 3.63V and exhibits a frequency stability of ±2.5 ppm across the operating temperature range of -40°C to +85°C. Key electrical parameters include a maximum supply current of 6 mA during active operation and a standby current of 10 µA when disabled. The component is housed in a compact 4-SMD, no-lead package measuring 3.20mm x 2.50mm with a maximum height of 1.50mm.

Oscillators Feature Summary

• Integrated temperature compensation ensures stable frequency performance across wide industrial temperature ranges.
• HCMOS output interface provides compatibility with standard digital logic circuits.
• Low power consumption design supports extended battery life in portable applications.
• Compact surface-mount footprint facilitates automated assembly and space-constrained PCB layouts.

Oscillators Applications

• Wireless communication modules requiring precise clock synchronization
• Portable electronic devices with limited power budgets
• Industrial control systems operating in variable thermal environments
• Consumer electronics utilizing high-frequency timing references

Oscillators Procurement Notes

Verify the specific ordering suffix and voltage configuration against the official Fox Electronics datasheet prior to procurement. Ensure that the selected variant matches the required supply voltage range and output logic type for the target application. Confirm compliance with RoHS3 standards and check for any recent revisions to the part number or packaging specifications to avoid integration errors during production.

Oscillators Selection Notes

Select this component based on its 12 MHz frequency requirement and ±2.5 ppm stability specification. Consider the HCMOS output level for direct interfacing with microcontrollers or digital processors. Evaluate the 4-SMD package dimensions against available board space. Assess the power consumption characteristics relative to system battery constraints and thermal management capabilities within the enclosure design.

Oscillators Part Context

This TCXO belongs to the FT3H series from Fox Electronics, which focuses on providing reliable frequency control solutions for demanding applications. The series integrates quartz crystals with compensation circuitry to maintain accuracy under thermal stress. Fox Electronics leverages advanced manufacturing techniques to ensure consistent performance and long-term reliability for global supply chains.

Oscillators Replacement Considerations

Direct substitutes may include other Fox Electronics models within the same series offering identical pinout and electrical characteristics. Cross-referencing with competitor TCXOs requires careful verification of voltage tolerance, current draw, and phase noise specifications to ensure functional equivalence without redesigning the host circuitry.
