FT3HVBPK16.0-T1

Oscillators Overview

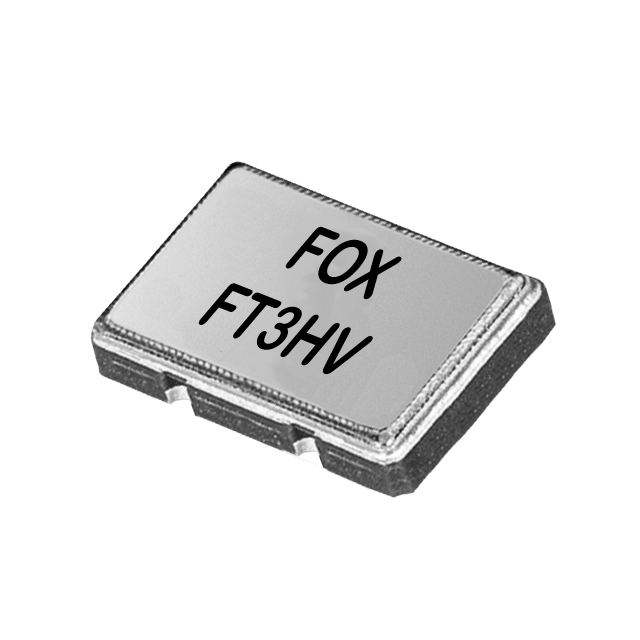

The FT3HVBPK16.0-T1 is a Surface Mount Voltage Controlled Temperature Compensated Crystal Oscillator (VC-TCXO) from the T3HV series, manufactured by Fox Electronics. It operates at a nominal frequency of 16 MHz with an HCMOS output format and a supply voltage of 3.3V ±5%. The device features a stability of ±2.5 ppm over the operating temperature range of -30°C to +85°C. It supports a pullability range of ±5 to ±15 ppm. The component is housed in a compact 3.2 x 2.5 mm SMD package.

Oscillators Feature Summary

• Compact 3.2 x 2.5 mm surface mount package suitable for space-constrained designs
• HCMOS output format providing digital signal compatibility
• Voltage control capability with pullability ranging from ±5 to ±15 ppm
• Temperature compensation ensuring ±2.5 ppm stability across -30°C to +85°C

Oscillators Applications

• Timing and frequency control applications requiring stable clock signals
• Communication systems utilizing HCMOS interface components
• Industrial equipment operating within standard commercial temperature ranges

Oscillators Procurement Notes

Verify the specific part number suffix against official Fox Electronics documentation to confirm the exact stability, temperature range, and packaging configuration. Ensure that the required pullability and output format match the system design specifications before procurement. Cross-reference the manufacturer's latest datasheets to confirm current availability status and any potential end-of-life notifications associated with this specific model variant.

Oscillators Selection Notes

Select this component when a small form factor VC-TCXO with HCMOS output is required for 16 MHz applications. The ±2.5 ppm stability meets requirements for moderate precision timing needs within the -30°C to +85°C range. Consider the voltage control feature if frequency adjustment via a control voltage is necessary for the application. Ensure the PCB layout accommodates the 3.2 x 2.5 mm footprint and provides appropriate power supply decoupling for the 3.3V operation.

Oscillators Part Context

This oscillator belongs to the FT3HV series of VC-TCXOs from Fox Electronics, designed for applications demanding high stability in a small package. The series utilizes temperature compensation technology to maintain frequency accuracy across varying environmental conditions. The HCMOS output ensures compatibility with standard digital logic circuits, making it suitable for a wide range of electronic devices requiring precise timing references.

Oscillators Replacement Considerations

Direct pin-compatible replacements may include other models from the Fox FT3HV series with matching frequency and stability ratings. Verify electrical parameters such as supply voltage, output format, and pullability range when selecting substitutes. Consult official substitution guides or contact Fox Electronics technical support for validated alternative part numbers.
