FT9CVDPH16.0-T1

Oscillators Overview

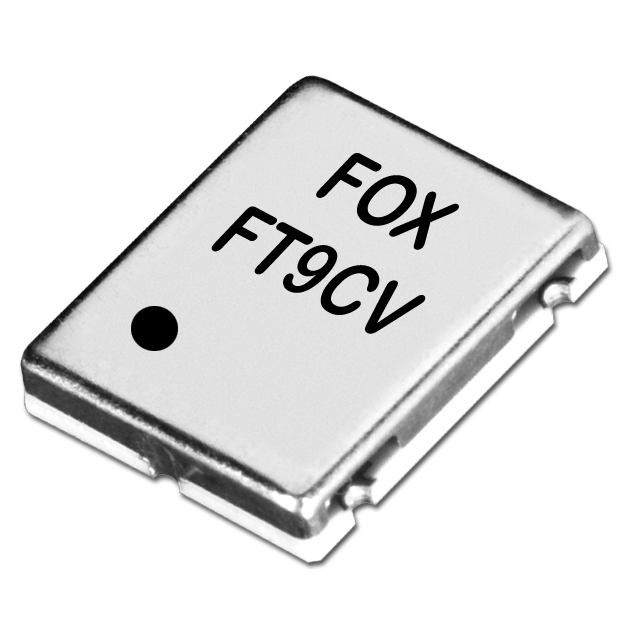

The FT9CVDPH16.0-T1 is a Voltage-Controlled Temperature-Compensated Crystal Oscillator (VCTCXO) from the Fox FT9CV series, manufactured by Fox Electronics. It operates at a nominal frequency of 16.0 MHz with a supply voltage of 3.0V ±5%. The device features a clipped sine wave output and offers a total frequency stability of ±2.5 ppm over an industrial temperature range of -30°C to +75°C. Packaged in a compact 11.4mm x 9.6mm surface-mount footprint with a maximum height of 2mm, it supports SMT assembly via standard 1000-piece tape-and-reel packaging.

Oscillators Feature Summary

• Integrated voltage control capability for precise frequency tuning and synchronization applications.
• Compact low-profile surface-mount design optimized for space-constrained electronic assemblies.
• Clipped sine wave output format suitable for direct interfacing with downstream RF components.

Oscillators Applications

• Industrial IoT gateway clock reference sources
• Portable handheld terminal timing circuits
• Small base station edge node synchronization

Oscillators Procurement Notes

Verify the specific suffix configuration against project requirements before ordering. Confirm that the 16.0 MHz frequency point is available in stock, as custom combinations may require extended lead times. Ensure the PCB layout strictly adheres to the specified pin definitions, particularly connecting the voltage control pin to avoid frequency deviation issues during operation.

Oscillators Selection Notes

Select this component when a balance between high stability and low cost is required for non-automotive or non-military environments. Consider the power consumption profile relative to the operating frequency band, as current draw increases at higher frequencies within the series range. Ensure the system power supply can support the peak current demands without introducing noise that affects frequency stability.

Oscillators Part Context

This model belongs to the FT9CV series, which serves as a successor to legacy FOX801 parts acquired by Abracon. The series targets mid-range communication needs, offering performance comparable to TCXOs but with added voltage tuning flexibility. It is designed to replace older discrete compensation solutions in modern compact industrial electronics.

Oscillators Replacement Considerations

The FT9HV series, specifically part numbers like FT9HVDPH16.0-BULK, serves as a functional equivalent for HCMOS output applications requiring similar form factors. Engineers transitioning from legacy FOX801BHCLF units should verify pin compatibility and output waveform differences when substituting with HCMOS variants.
