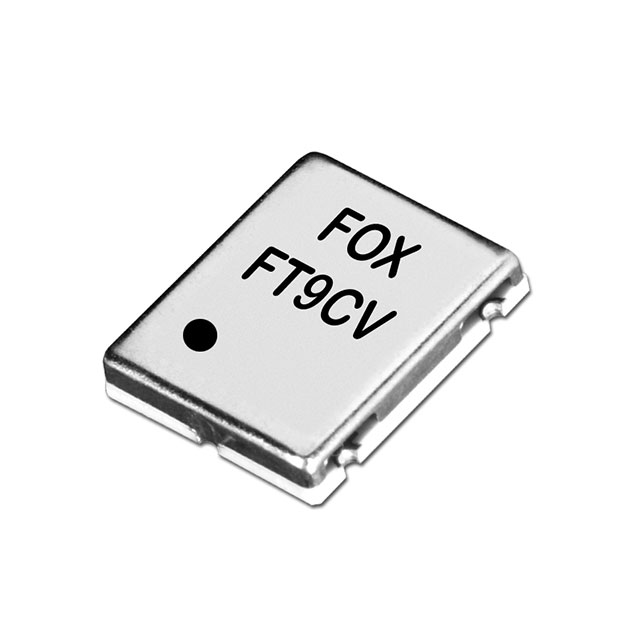

FT9CVDPH20.0-T1 is listed in the Oscillators range at ChipApex. The manufacturer field lists Fox Electronics. Its product description is XTAL OSC VCTCXO 20.0000MHZ SNWV. Review the specifications below when checking this part for your BOM.
Oscillators specifications for FT9CVDPH20.0-T1
- Description：XTAL OSC VCTCXO 20.0000MHZ SNWV
- Series：FOX801_E
- Mfr：Fox Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Base Resonator：Crystal
- Type：VCTCXO
- Frequency：20 MHz
- Function：-
- Output：Clipped Sine Wave
- Voltage - Supply：3V
- Frequency Stability：±2.5ppm
- Absolute Pull Range (APR)：-
- Operating Temperature：-30°C ~ 75°C
- Spread Spectrum Bandwidth：-
- Current - Supply (Max)：2mA
- Ratings：-
- Mounting Type：Surface Mount
- Package / Case：4-SMD, No Lead
- Size / Dimension：0.449" L x 0.378" W (11.40mm x 9.60mm)
- Height - Seated (Max)：0.079" (2.00mm)
- Supplier Device Package：-
Oscillators datasheet and documents for FT9CVDPH20.0-T1
Oscillators Overview
The FT9CVDPH20.0-T1 is a Voltage-Controlled Temperature-Compensated Crystal Oscillator (VCTCXO) manufactured by Fox Electronics, part of the FT9CV series. It operates at a nominal frequency of 20.0 MHz with a frequency stability of ±2.5 ppm. The device supports a supply voltage of 3.0 V and utilizes a clipped sine wave output. It features a compact surface-mount package measuring 11.4 mm x 9.6 mm with a maximum height of 2.0 mm. The operating temperature range is specified from -30°C to +75°C.
Oscillators Feature Summary
- Compact surface-mount design with a low profile suitable for space-constrained applications
- Integrated voltage control capability for precise frequency tuning and synchronization
- Clipped sine wave output signal generation
Oscillators Applications
- Industrial IoT gateway clock sources
- Beidou timing module reference clocks
- Small base station edge node synchronization
Oscillators Procurement Notes
Verify current manufacturing status as some listings indicate discontinuation or stock depletion. Confirm availability through authorized distributors. Check lead times for custom frequency combinations. Ensure ordering suffix matches required packaging and specifications.
Oscillators Selection Notes
Evaluate power consumption based on specific frequency bands within the 9.6 MHz to 50 MHz range. Consider total frequency drift including temperature, load, and aging factors. Ensure VC pin receives appropriate bias voltage for calibration. Verify output amplitude meets downstream circuit requirements.
Oscillators Part Context
This component belongs to the FT9CV series of VCTCXOs, designed as a replacement for older models like FOX801. It offers industrial-grade stability in a small form factor, targeting cost-sensitive applications requiring moderate precision without automotive or military certification.
Oscillators Replacement Considerations
FT9HV serves as a functional alternative within the same product family, offering similar dimensions and electrical characteristics for legacy FOX801 designs.
