FTE-114-01-G-DH

$4.65

Description：CONN HEADER SMD R/A 28POS 0.8MM
Series：FTE
Mfr：Samtec Inc.
Package：Bulk

SKU:712fa9c132cd Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FTE-114-01-G-DH is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER SMD R/A 28POS 0.8MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for FTE-114-01-G-DH

Description：CONN HEADER SMD R/A 28POS 0.8MM
Series：FTE
Mfr：Samtec Inc.
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.031" (0.80mm)
Number of Positions：28
Number of Rows：2
Row Spacing - Mating：0.047" (1.20mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.075" (1.90mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.120" (3.05mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Contact Finish - Post：Gold
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2.7A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for FTE-114-01-G-DH

FTE-114-01-G-DH

Headers, Male Pins Overview

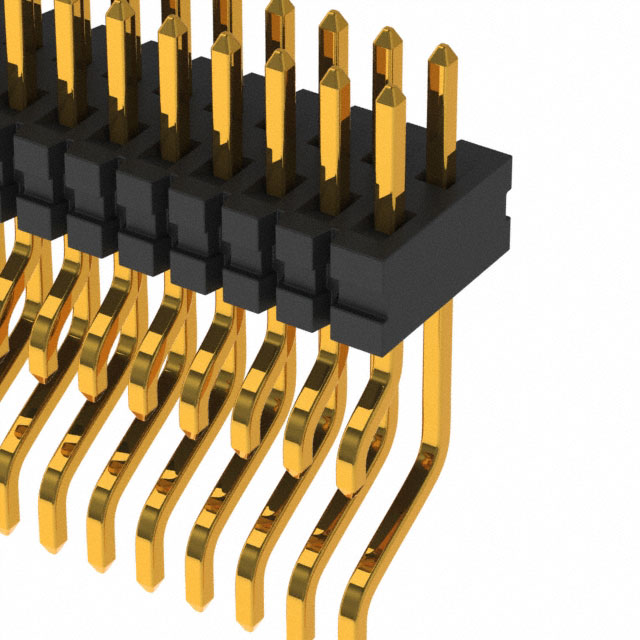

The FTE-114-01-G-DH is a Samtec micro terminal strip header featuring a 0.80 mm pitch and 28 positions across two rows. Designed for surface mount right-angle installation, it utilizes phosphor bronze contacts with gold plating and an LCP insulator. The component supports a current rating of 2.7 A per contact and operates within a temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

Surface mount right-angle configuration for compact board-to-board integration
Gold-plated phosphor bronze contacts ensure reliable signal transmission
Liquid crystal polymer insulation provides high thermal stability

Headers, Male Pins Applications

Board-to-board interconnections in dense electronic assemblies
Mezzanine connector applications requiring vertical space efficiency
High-density signal routing in telecommunications equipment

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Samtec datasheet to confirm pin count, row configuration, and termination style. Ensure compatibility with automated surface mount placement processes. Cross-reference the RoHS compliance status and material specifications with the latest manufacturer documentation before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle surface mount solution is required for high-density connections. The 0.80 mm pitch allows for significant I/O density within limited board area. Verify that the mating connector matches the dual-row male pin configuration and compatible housing dimensions for proper mechanical alignment.

Headers, Male Pins Part Context

This part belongs to the FTE series of micro terminal strips from Samtec. The series is characterized by its fine 0.80 mm pitch and robust construction suitable for demanding environments. It serves as a specialized interconnect solution for modern electronics where space constraints and signal integrity are critical design factors.
