FTE-114-01-G-DV-A

$5.83

Description：CONN HEADER SMD 28POS 0.8MM
Series：FTE
Mfr：Samtec Inc.
Package：Tube

SKU:453dbe1c5011 Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FTE-114-01-G-DV-A is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER SMD 28POS 0.8MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for FTE-114-01-G-DV-A

Description：CONN HEADER SMD 28POS 0.8MM
Series：FTE
Mfr：Samtec Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.031" (0.80mm)
Number of Positions：28
Number of Rows：2
Row Spacing - Mating：0.047" (1.20mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.075" (1.90mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.055" (1.40mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Contact Finish - Post：Gold
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：Board Guide
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2.7A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for FTE-114-01-G-DV-A

FTE-114-01-G-DV-A

Headers, Male Pins Overview

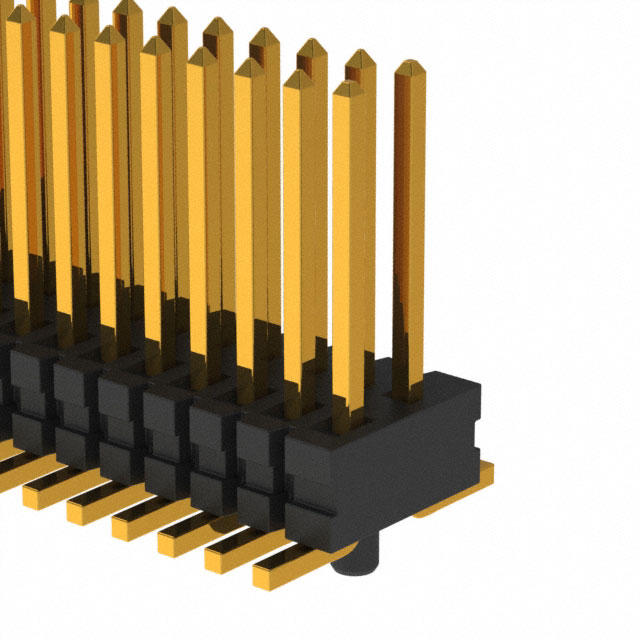

The Samtec FTE-114-01-G-DV-A is a surface-mount header strip featuring 28 positions arranged in a dual-row configuration. It utilizes a 0.80 mm (0.031 inch) pitch with a row spacing of 1.20 mm (0.047 inch). The connector employs phosphor bronze contacts with gold plating, rated for 2.7 A per contact. Designed for board-to-board applications, it operates within a temperature range of -55°C to +125°C and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

Surface-mount construction with push-pull locking mechanism
Gold-plated phosphor bronze contacts for reliable signal transmission
Liquid crystal polymer insulation housing for thermal stability

Headers, Male Pins Applications

Board-to-board interconnections
High-density electronic assemblies
Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific suffix 'A' against the official Samtec datasheet to confirm exact mechanical dimensions and termination style. Ensure compatibility with automated pick-and-place equipment if using tape-and-reel packaging variants. Cross-reference the pin count and row configuration with PCB footprint drawings prior to procurement to prevent assembly errors.

Headers, Male Pins Selection Notes

Select this component for applications requiring high-density connections with a 0.80 mm pitch. The surface-mount design supports automated manufacturing processes. Consider the 2.7 A current rating and operating temperature range when evaluating thermal performance. Verify that the board-to-board application aligns with the connector's mechanical height and mating force specifications.

Headers, Male Pins Part Context

This part belongs to the FTE series of micro terminal strips by Samtec. The series is characterized by its low-profile surface-mount design and high reliability. It is distinct from other Samtec headers by its specific 0.80 mm pitch and dual-row configuration optimized for dense circuit layouts.
