FTE-143-02-G-DV

Headers, Male Pins Overview

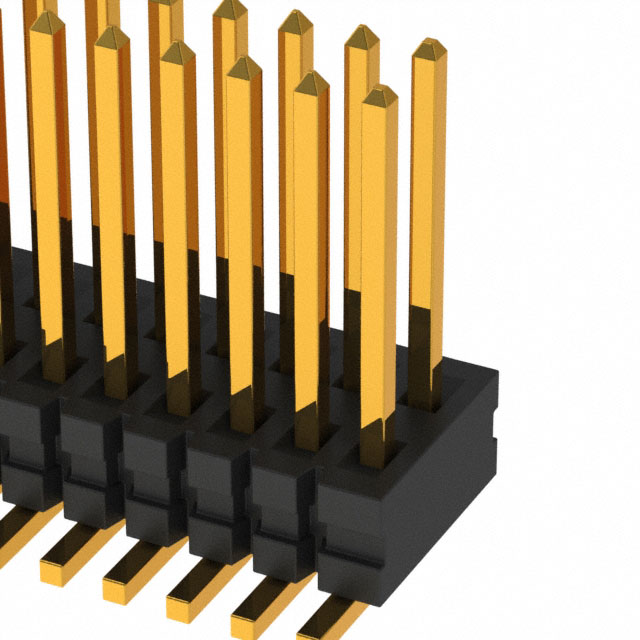

The FTE-143-02-G-DV is a board connector from the Samtec FTE series, featuring 86 contacts arranged in two rows. It utilizes a 0.031 inch (0.80 mm) pitch with straight surface mount terminals. The male pins are constructed from phosphor bronze with gold plating over nickel. The insulator is black liquid crystal polymer (LCP), rated UL 94 V-0. Operating temperature ranges from -55°C to +125°C, with a current rating of 2.7 A per contact.

Headers, Male Pins Feature Summary

• Straight surface mount design for direct PCB integration
• Gold-plated phosphor bronze contacts for reliable conductivity
• High-temperature LCP insulator material ensuring thermal stability

Headers, Male Pins Applications

• Board-to-board interconnections
• Mezzanine circuit connections
• High-density electronic assemblies

Headers, Male Pins Procurement Notes

Verify the exact part number against official Samtec documentation to confirm pin count and termination style. Ensure compatibility with mating connectors in the FTE series. Check RoHS compliance status and moisture sensitivity levels before procurement. Confirm lead-free specifications if required by project standards.

Headers, Male Pins Selection Notes

Select this component for applications requiring high-density board-to-board connections with surface mount technology. Consider the 0.80 mm pitch and 86-contact capacity for space-constrained designs. Evaluate thermal requirements against the -55°C to +125°C operating range. Ensure mechanical fit for straight mounting orientation on the target PCB.

Headers, Male Pins Part Context

This component belongs to the FTE Micro Terminal Strip series by Samtec Inc. The series offers various contact counts and configurations for board-to-board and mezzanine applications. The FTE-143-02-G-DV specifically provides a high-density solution with surface mount capabilities and robust electrical performance characteristics suitable for modern electronics.

Headers, Male Pins Replacement Considerations

Compatible substitutes within the FTE series include FTE-143-01-G-DV and FTE-143-02-G-DH. Verify pin configuration and mounting style differences before substitution. Cross-reference datasheets for identical pitch and contact material specifications.
