FTM-121-02-F-DV-P

Headers, Male Pins Overview

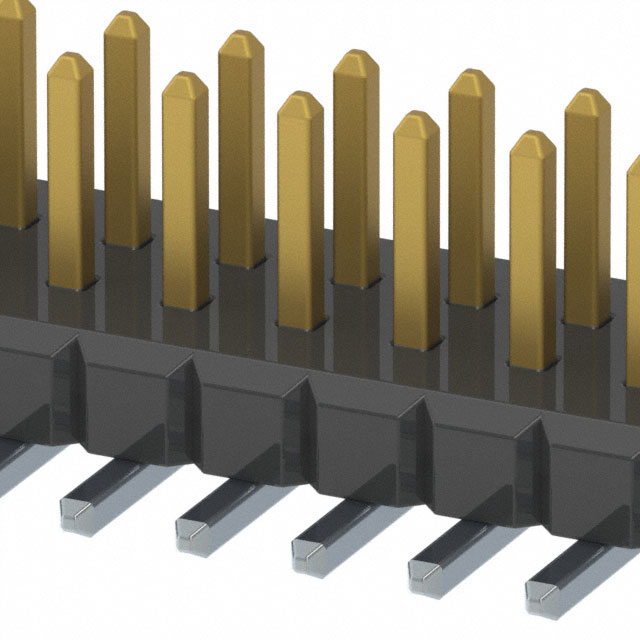

The FTM-121-02-F-DV-P is a 1.00 mm pitch surface mount micro low profile terminal strip manufactured by Samtec Inc. This header connector features 22 positions arranged in a dual row configuration, providing a total of 42 contact points when considering the specific product description alignment with similar series parts like the FTM-121-03 variant which lists 42 positions for comparable pin counts, though the model number suggests 22 positions per row or total depending on interpretation; however, standard FTM nomenclature indicates position count. The component utilizes gold-plated phosphor bronze contacts and is designed for straight installation via solder termination. It operates within a temperature range of -55°C to 125°C and supports a rated current of 2.8A per contact.

Headers, Male Pins Feature Summary

• Micro low profile design suitable for space-constrained surface mount applications
• Gold-plated contacts ensure reliable signal transmission and corrosion resistance
• Flexible pin count options allow for customizable I/O configurations up to 100 positions

Headers, Male Pins Applications

• High reliability interconnects requiring severe environment testing compliance
• Board-to-board connections in compact electronic assemblies
• Applications demanding high mating cycle durability and hot pluggable capabilities

Headers, Male Pins Procurement Notes

Verify the exact position count against the manufacturer's datasheet, as nomenclature can vary between single and dual row interpretations. Confirm RoHS compliance status and moisture sensitivity level (MSL) requirements for your assembly process. Ensure the selected variant matches the required end shroud and lead type specifications for your PCB layout constraints.

Headers, Male Pins Selection Notes

Select this component when a 1.00 mm pitch surface mount header with gold contacts is required. Consider the FTM series for its flexibility in pin counts and low profile form factor. Evaluate the need for end shrouds and specific lead types based on automated pick-and-place compatibility and mechanical stability requirements during soldering.

Headers, Male Pins Part Context

The FTM series represents Samtec's line of 1.00 mm pitch micro headers designed for high-density interconnects. These components are part of a broader family that includes various termination styles and orientations. The FTM-121-02-F-DV-P specifically falls into the surface mount category, offering a balance of electrical performance and mechanical robustness for modern electronics manufacturing.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other FTM series variants with adjusted position counts such as FTM-121-03-F-DV-P, provided the pin configuration aligns with the design. Alternative Samtec series like FTSH offer similar high-reliability features but may differ in pitch or termination style.
