FTMH-109-02-L-DV-P-TR

Headers, Male Pins Overview

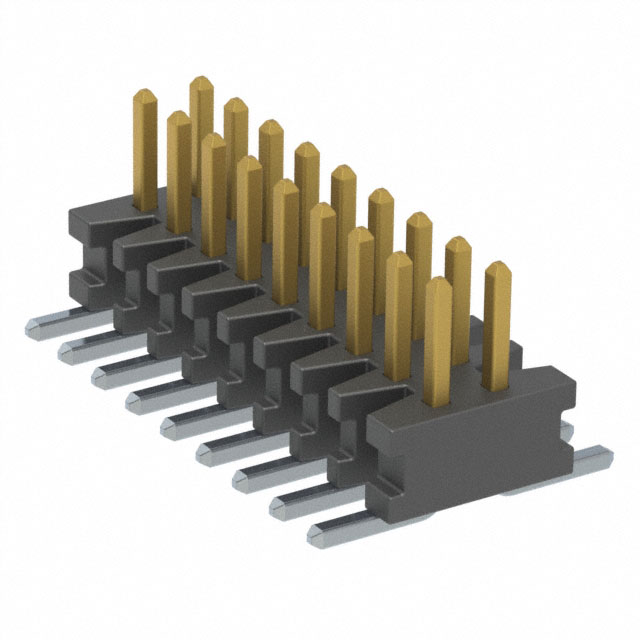

FTMH-109-02-L-DV-P-TR is a surface mount header manufactured by Samtec Inc. It features 18 positions arranged in two rows with a 1.00mm pitch. The connector utilizes phosphor bronze contacts with 10µin gold plating and tin terminations. Designed for pick-and-place assembly, it operates within a temperature range of -55°C to +125°C. The housing is constructed from black liquid crystal polymer rated UL94 V-0. Rated current is 2.8A per contact.

Headers, Male Pins Feature Summary

• Surface mount design optimized for automated pick-and-place processing
• Dual-wipe contact system ensures reliable signal integrity
• Low-profile shrouded header construction for board-to-board applications

Headers, Male Pins Applications

• High-density electronic assemblies requiring automated SMT placement
• Board-to-board interconnects in compact industrial modules
• Signal routing in telecommunications equipment

Headers, Male Pins Procurement Notes

Verify the specific suffix TR against official Samtec documentation to confirm tape and reel packaging requirements. Ensure compatibility with standard SMT reflow profiles and check for RoHS3 compliance status prior to final procurement authorization.

Headers, Male Pins Selection Notes

Select this component when a 1.00mm pitch surface mount header is required for high-reliability connections. Consider the dual-row configuration and low-profile height constraints. Validate mating socket post dimensions and verify thermal resistance capabilities for the intended operational environment.

Headers, Male Pins Part Context

This part belongs to the FTMH series of low-profile headers. It shares family characteristics such as the dual-wipe contact technology and LCP insulation material. The specific model defines the pin count, row configuration, and termination style unique to this variant.

Headers, Male Pins Replacement Considerations

Consult official Samtec substitution guides for verified equivalents. Generic cross-references may not match the precise dual-wipe contact geometry or shroud dimensions required for proper mating.
