FTMH-113-03-F-DV-ES-A-P-TR

Headers, Male Pins Overview

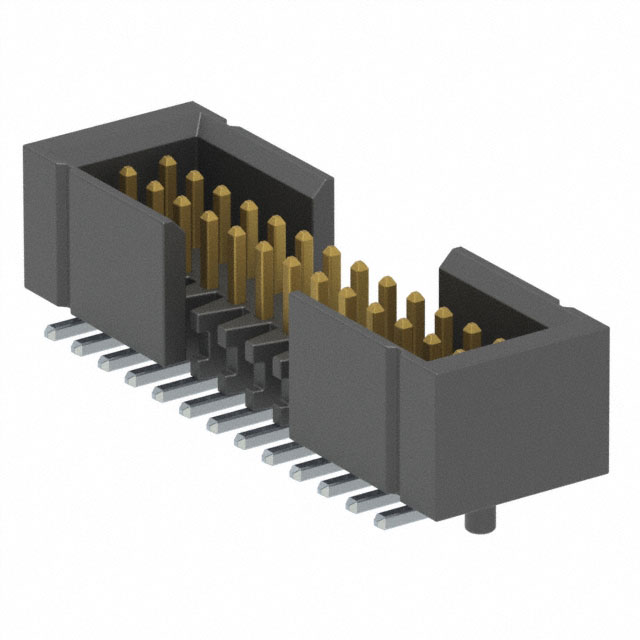

FTMH-113-03-F-DV-ES-A-P-TR is a board connector manufactured by Samtec Inc. It features 26 contacts arranged in two rows with male polarity and straight orientation. The component utilizes surface mount terminals and operates at a 1.00 mm pitch. Plating specifications include flash gold in the contact area and matte tin on the tail, consistent with the -F suffix.

Headers, Male Pins Feature Summary

• Configurable flexible pin count up to 100 I/Os
• Low-cost flash gold plating option for cost efficiency
• Extended Life Product (ELP) designation for durability
• Surface mount terminal design for compact integration

Headers, Male Pins Applications

• High-density interconnect applications
• Board-to-board connections
• Compact electronic device assembly

Headers, Male Pins Procurement Notes

Verify that the specific ordering suffixes match the required configuration. Confirm the lead style corresponds to the intended PCB layout requirements. Ensure the ELP rating aligns with the operational lifespan expectations of the target application environment.

Headers, Male Pins Selection Notes

Select this part when a low-cost solution with reliable performance is needed. The FTMH series offers flexibility in pin count. Verify compatibility with mating headers from the FTM or ESQT families. Check thermal ratings against system operating conditions.

Headers, Male Pins Part Context

The FTMH series represents a micro terminal strip designed for space-constrained environments. This specific model belongs to the extended life product line, indicating enhanced durability compared to standard variants. It supports various plating options to suit different environmental needs.

Headers, Male Pins Replacement Considerations

Compatible substitutes may include other FTMH models with matching pitch and contact count. Verify mechanical dimensions and electrical ratings before substitution. Consult official cross-reference guides for exact functional equivalents.
