FTMH-130-03-L-DV-ES

Headers, Male Pins Overview

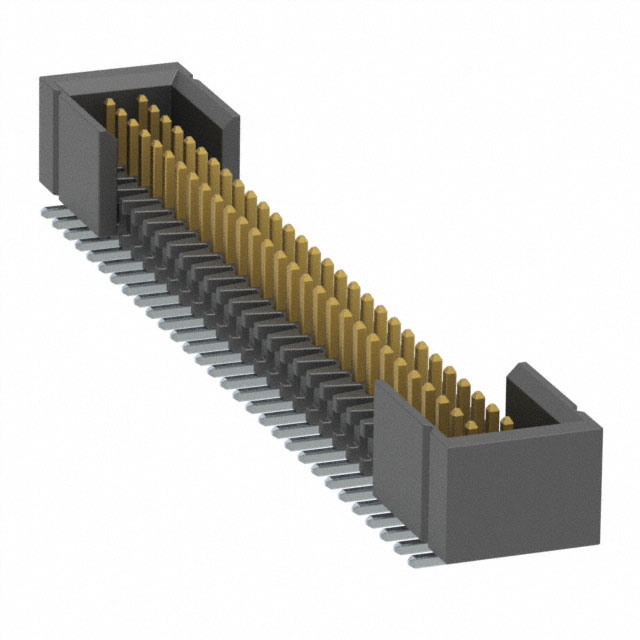

The FTMH-130-03-L-DV-ES is a surface mount header from the Samtec FTMH series, featuring a 1.00 mm pitch and 60 positions in a dual-row configuration. It utilizes phosphor bronze contacts with gold plating and liquid crystal polymer insulation rated UL94 V-0. The connector supports a current rating of 3.1 A per contact and operates within a temperature range of -55°C to +125°C. Designed for board-to-board applications, it includes end shrouds and mates with CLM sockets.

Headers, Male Pins Feature Summary

• Features end shrouds for enhanced alignment and protection during assembly
• Supports flexible positioning up to 100 I/Os within the series design
• Utilizes low-profile construction suitable for space-constrained layouts

Headers, Male Pins Applications

• Board-to-board interconnections in compact electronic assemblies
• High-density signal routing in industrial control systems
• Integration in automotive electronics requiring robust surface mount headers

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required pin count and row configuration. Confirm that the surface mount termination style aligns with the PCB fabrication capabilities. Ensure compatibility with mating socket types such as the CLM series. Check environmental ratings against operational requirements. Validate that the packaging format meets production handling standards.

Headers, Male Pins Selection Notes

Select this component when a 1.00 mm pitch surface mount header with end shrouds is required. Consider the 3.1 A current rating and -55°C to +125°C operating range for suitability. Evaluate the need for dual-row configurations and 60-position capacity. Compare against alternative series if different pitch or termination styles are needed. Ensure mechanical fit within the designated board area.

Headers, Male Pins Part Context

This component belongs to the FTMH series of 1.00 mm surface mount micro terminal strips by Samtec Inc. The series offers various position counts and termination options. The FTMH-130-03 variant specifically denotes a 60-position dual-row header. Related parts include variations with different lengths or without end shrouds.

Headers, Male Pins Replacement Considerations

Compatible substitutes within the same family include FTMH-130-03-L-DV-EP-A-P-TR and FTMH-130-03-F-DV-ES-A. Verify identical pitch, position count, and mounting style before substitution. Cross-reference datasheets for any differences in contact material or insulation properties.
