FTMH-132-02-F-DV-ES

Headers, Male Pins Overview

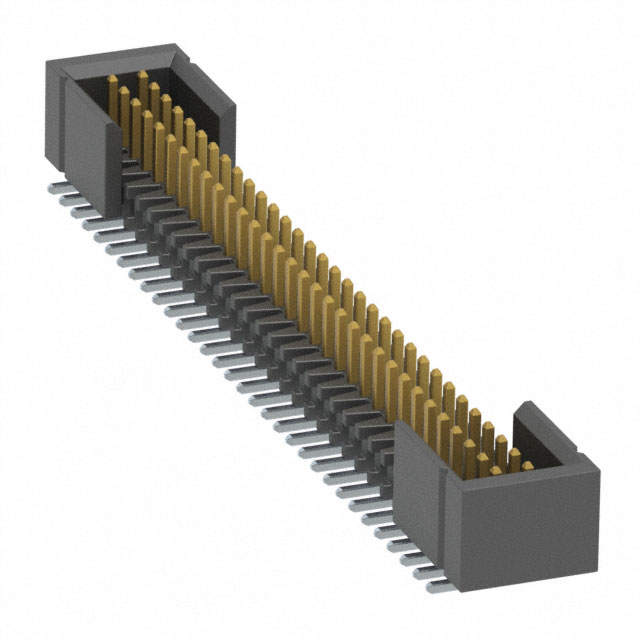

The FTMH-132-02-F-DV-ES is a 1.00 mm pitch surface mount micro terminal strip manufactured by Samtec Inc. This board-to-board connector features a male contact configuration with two rows of contacts, providing a total of 64 positions. The housing is constructed from black liquid crystal polymer (LCP) rated UL 94 V-0. It utilizes phosphor bronze terminals with gold flash plating on the mating interface and matte tin on the termination side. Designed for straight mounting, this component supports flexible stacking configurations up to 100 I/Os within its series.

Headers, Male Pins Feature Summary

• Flexible positioning capability allows for variable pin counts up to 100 I/Os
• Low profile header design suitable for space-constrained applications
• Available with or without end shrouds and guide posts

Headers, Male Pins Applications

• Board-to-board interconnections
• Backplane connections
• High-density electronic assemblies

Headers, Male Pins Procurement Notes

Verify that the specific suffix 'P' in related part numbers indicates tape-and-reel packaging if reel supply is required, as standard bulk versions may differ. Confirm RoHS compliance status and ensure mating socket selections match the 1.00 mm pitch and 2-row male configuration. Cross-reference datasheet specifications for recommended PCB land patterns to guarantee proper surface mount alignment and solder joint integrity during assembly.

Headers, Male Pins Selection Notes

Select this component when a 1.00 mm pitch surface mount header is required for high-density routing. Ensure the application environment falls within the specified operating temperature range and current rating limits. Consider the availability of extended life product options if higher mating cycle durability is necessary for the target deployment scenario.

Headers, Male Pins Part Context

This part belongs to the FTMH series of 1.00 mm Surface Mount Micro Terminal Strips. The series offers vertical or horizontal row options and includes automotive A-Series variants. Similar parts in the lineup include variations with different contact lengths, plating thicknesses, and shroud configurations to accommodate diverse mechanical constraints.

Headers, Male Pins Replacement Considerations

FTMH-132-02-F-DV-ES-A

Headers, Male Pins FAQ

What is the insulator material used for this connector?

The housing is made from black liquid crystal polymer (LCP).

Does this connector support flexible pin arrangements?

Yes, the series allows for flexible positions up to 100 I/Os.
