FTMH-145-03-H-DV-A

Headers, Male Pins Overview

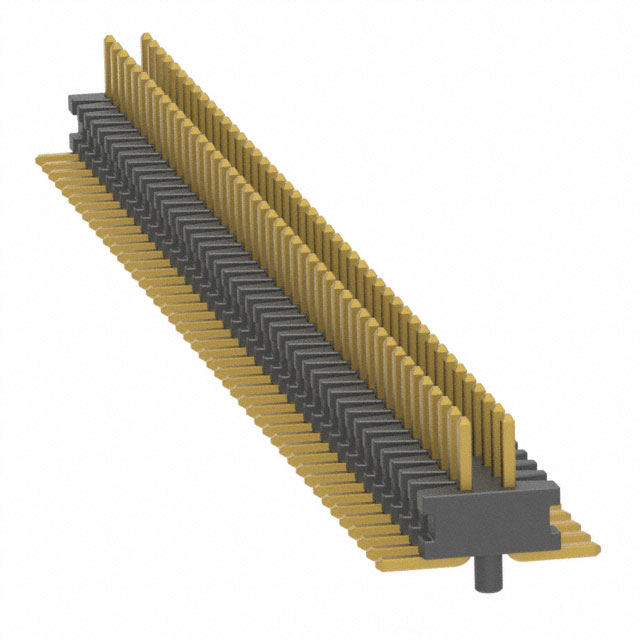

The FTMH-145-03-H-DV-A is a board-to-board and backplane connector from the Samtec FTMH series, designed as a 1.00 mm surface mount micro terminal strip. It features a male header configuration with two rows of contacts, providing a total of 90 positions. The connector utilizes a straight surface mount termination style for PCB integration. Contact materials are specified as phosphor bronze, with gold plating to ensure reliable signal transmission. The unit operates within a temperature range of -55 °C to +125 °C and carries an UL recognition under file number E111594.

Headers, Male Pins Feature Summary

• Utilizes a low-profile design suitable for space-constrained applications
• Offers flexible position counts up to 100 I/Os within the series
• Available in vertical or horizontal row orientations
• Supports optional end shrouds and guide posts for alignment

Headers, Male Pins Applications

• High-density board-to-board interconnections
• Backplane connectivity systems
• Automotive electronic modules
• Industrial control hardware interfaces

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Samtec documentation to confirm contact plating thickness and material composition. Ensure that the selected variant matches the required mechanical orientation and shroud configuration for the target assembly. Cross-reference the part number with the manufacturer's current datasheet to validate compliance with RoHS and REACH regulations prior to procurement.

Headers, Male Pins Selection Notes

Select this component when a 1.00 mm pitch surface mount header with high reliability is required. The gold-plated contacts support extended mating cycles, making it suitable for applications demanding durability. Consider the available row options and shroud configurations to match the mating socket requirements. Verify thermal and electrical ratings against system specifications to ensure operational integrity.

Headers, Male Pins Part Context

This part belongs to the FTMH series of 1.00 mm surface mount micro terminal strips. The series provides rugged interconnect solutions with flexible positioning options. It is designed to mate with corresponding sockets such as the CLM series, offering a complete board-stacking solution. The product line emphasizes high cycle life and cost-effective manufacturing processes.

Headers, Male Pins Replacement Considerations

Compatible mating components include the CLM series sockets. Verify dimensional compatibility and pinout alignment before substituting or pairing with alternative connectors from other manufacturers.
