FTS-108-03-L-DV-P-TR

Headers, Male Pins Overview

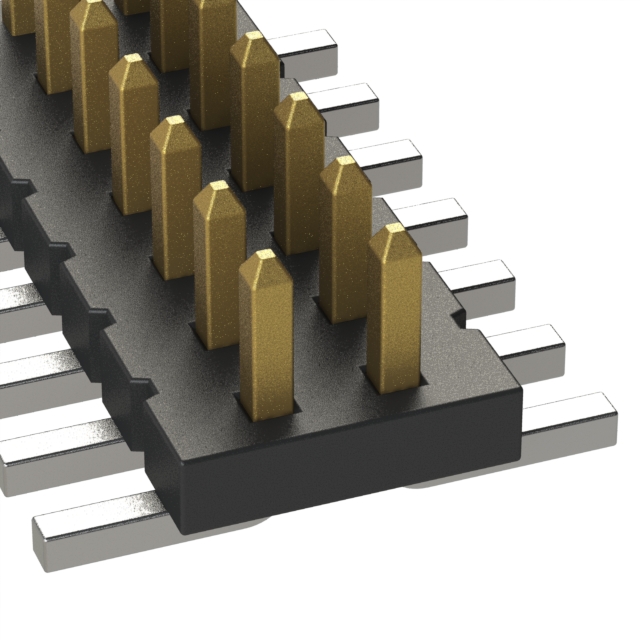

The FTS-108-03-L-DV-P-TR is a surface mount header manufactured by Samtec Inc. It features a 16-position, 2-row configuration with a 0.050" (1.27mm) pitch. The connector utilizes phosphor bronze contacts with gold plating and matte tin tails, housed in black LCP insulation rated UL94 V-0. Designed for board-to-board or cable applications, it supports a current rating of 3.4A per contact and operates within a temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Micro low profile terminal strip design suitable for space-constrained surface mount applications
• Compatible mating with FFSD, CLP, and FLE series connectors for flexible system integration
• Robust construction using liquid crystal polymer insulation for high thermal stability

Headers, Male Pins Applications

• Board-to-board interconnections in compact electronic assemblies
• Cable-to-board connections requiring surface mount termination
• High-density signal routing in telecommunications equipment

Headers, Male Pins Procurement Notes

Verify the specific ordering suffixes against the official Samtec datasheet to ensure correct post height, plating specification, and packaging type. Confirm that the selected variant matches the required PCB footprint and mating connector interface. Cross-reference the component status to ensure active production availability before finalizing procurement plans.

Headers, Male Pins Selection Notes

Select this component when a low-profile, surface-mount header is required for 1.27mm pitch applications. Ensure the mating connector aligns with the FTSH or FTS series compatibility list. Consider the mechanical constraints of the assembly regarding insulation height and available vertical clearance for proper engagement.

Headers, Male Pins Part Context

This part belongs to the FTS series of micro low profile terminal strips from Samtec. The series offers various row counts and termination styles, including surface mount and through-hole options. It is designed for high-reliability interconnects in demanding environments, providing consistent performance across diverse industrial and commercial applications.

Headers, Male Pins Replacement Considerations

Consult the official Samtec cross-reference guide for verified substitute part numbers. Ensure any replacement maintains identical pitch, row count, and mounting style to guarantee mechanical and electrical compatibility without redesigning the PCB layout.
