FTS-111-01-L-D

Headers, Male Pins Overview

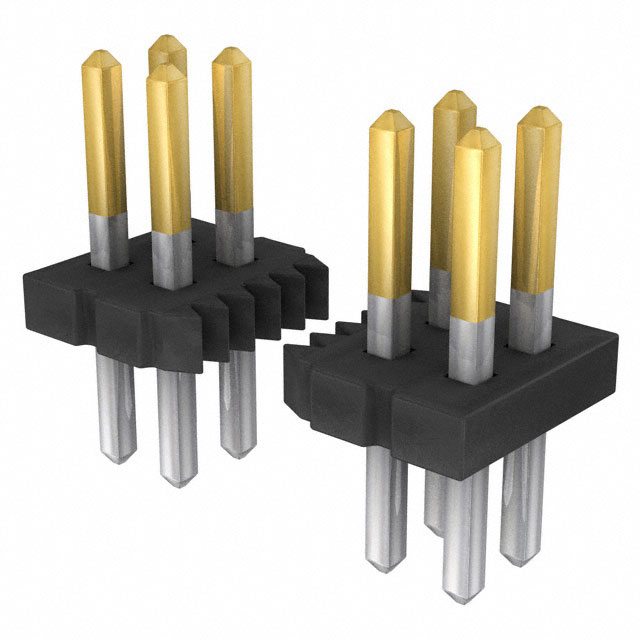

The FTS-111-01-L-D is a micro low profile terminal strip header manufactured by Samtec Inc. It features a 22-position, dual-row configuration with a 0.050 inch (1.27mm) centerline spacing. Designed for through-hole mounting, the connector utilizes square-shaped male pins with selective gold plating on mating surfaces and tin plating on tail sections. The phosphor bronze contacts are housed in black liquid crystal polymer (LCP) insulation rated UL94 V-0. Key dimensions include an overall contact length of 0.244 inches (6.20mm), a mating contact length of 0.120 inches (3.05mm), and an insulation height of 0.034 inches (0.86mm).

Headers, Male Pins Feature Summary

• Micro low profile design suitable for space-constrained applications.
• Selective gold plating ensures reliable electrical conductivity at mating interfaces.
• Through-hole termination provides secure mechanical attachment to PCBs.

Headers, Male Pins Applications

• Board-to-board interconnections.
• Wire-to-board connections.
• General electronic circuit assembly.

Headers, Male Pins Procurement Notes

Verify the specific part number against official Samtec documentation to confirm pin count, row configuration, and termination style. Ensure that the required through-hole mounting method aligns with your manufacturing process capabilities. Cross-reference the insulation material and flammability rating with your project's environmental and safety requirements before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a low-profile header with 1.27mm spacing is required for through-hole PCB assembly. Consider the 0.034-inch insulation height for vertical clearance constraints. Verify compatibility with mating connectors such as FFSD, CLP, or FLE series if board-to-board connectivity is intended. Confirm that the 22-position dual-row layout fits within the designated footprint on the printed circuit board.

Headers, Male Pins Part Context

This component belongs to the FTS series of micro low profile terminal strips from Samtec. These headers are engineered for high-density applications requiring reliable signal transmission. The series offers various pin counts and configurations, making it adaptable to diverse electronic designs while maintaining a compact physical profile.

Headers, Male Pins Replacement Considerations

FTS-111-01-L-D

Headers, Male Pins FAQ

What is the mating contact length of the FTS-111-01-L-D?

The mating contact length is 0.120 inches (3.05mm).

Which materials are used for the contacts and insulation?

The contacts are made of phosphor bronze, and the insulation is black liquid crystal polymer (LCP).
