FTS-118-04-L-DV

Headers, Male Pins Overview

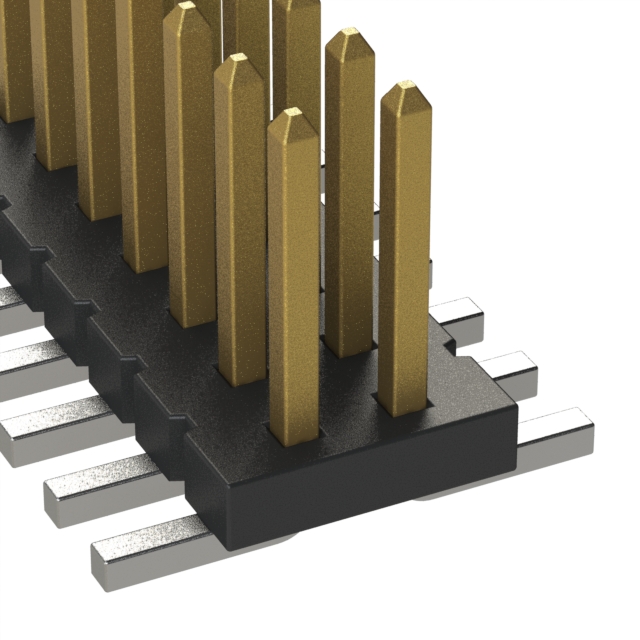

The Samtec FTS-118-04-L-DV is a surface-mount board connector featuring a male pin configuration with a 1.27 mm (0.050 inch) terminal pitch. It comprises 36 total contacts arranged in two rows, designed for straight board installation. The component utilizes a surface mount termination type and is classified as a general-purpose board connector.

Headers, Male Pins Feature Summary

• Micro low profile header strip design
• Surface mount termination style
• Push-pull fastening mechanism

Headers, Male Pins Applications

• Board-to-board interconnects
• Cable connections
• Compact electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix against official documentation to confirm packaging and plating specifications. Confirm that the -DV designation aligns with the required tape and reel or pick-and-place pad options. Ensure the lead style matches the intended assembly process before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this part for applications requiring a micro low profile header with surface mount capabilities. Consider the 1.27 mm pitch and dual-row configuration for space-constrained designs. Verify compatibility with mating connectors regarding contact length and insulation height requirements.

Headers, Male Pins Part Context

This component belongs to the FTS series of micro low profile header strips manufactured by Samtec Inc. The series offers various configurations including single and double row options with different termination styles. It is designed for high-density interconnect solutions in modern electronics.

Headers, Male Pins Replacement Considerations

Consult official Samtec documentation for confirmed substitute part numbers within the FTS series. Verify dimensional and electrical compatibility before considering alternatives.
