FTS-122-03-L-DV-P-TR

Headers, Male Pins Overview

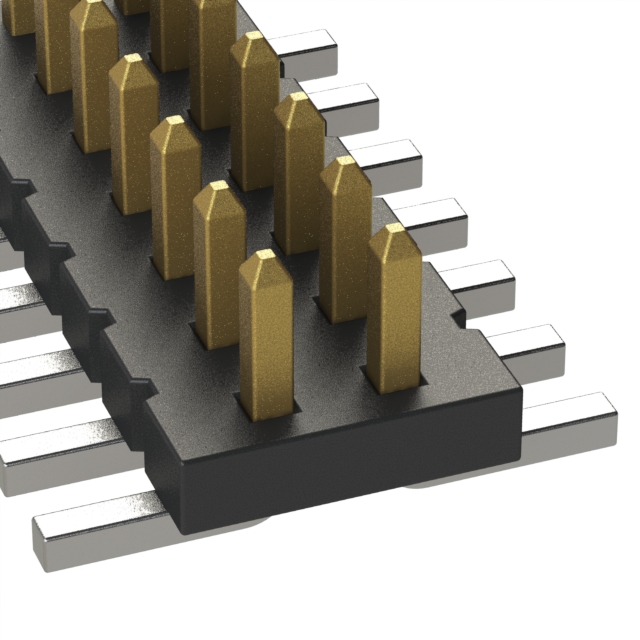

The FTS-122-03-L-DV-P-TR is a 44-position, double-row male pin header from Samtec's FTS series. It features a 0.050 inch (1.27 mm) pitch and is designed for surface mount termination. The connector utilizes phosphor bronze contacts with flash gold plating and a black liquid crystal polymer insulator. It supports an operating temperature range of -55°C to +125°C and carries UL 94 V-0 flammability ratings.

Headers, Male Pins Feature Summary

• Micro low profile design suitable for space-constrained applications
• Surface mount termination with straight pin configuration
• Flash gold contact plating for cost-effective conductivity

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• General electronic device assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Samtec catalog to ensure correct post height and termination style. Confirm that the reel packaging matches production requirements. Cross-reference the RoHS compliance status and moisture sensitivity level with current manufacturing standards before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, high-density connection is required on a PCB. Ensure the mating connector aligns with the 0.050 inch pitch specification. Consider the surface mount installation method and verify that the board layout accommodates the straight pin orientation and overall footprint dimensions.

Headers, Male Pins Part Context

This part belongs to the FTS series, which are micro low profile terminal strip headers. The series offers various configurations including single and double rows, with options for end shrouds and alignment pins. It is designed for vertical row configurations and provides flexible positioning capabilities for diverse electronic assembly needs.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Samtec FTS series headers with matching 44-position, double-row specifications and 0.050 inch pitch. Verify identical surface mount termination and straight pin orientation. Ensure the replacement maintains the same contact material and plating characteristics for equivalent performance.
