FTSH-102-01-F-DH

Headers, Male Pins Overview

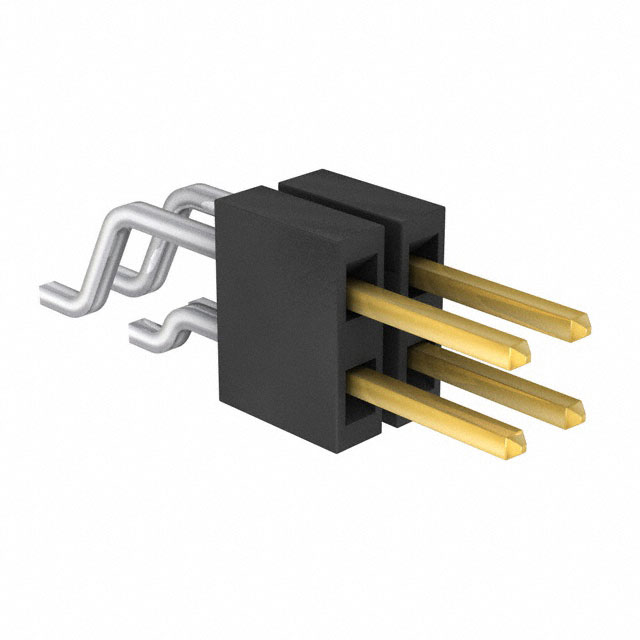

The FTSH-102-01-F-DH is a dual row, high reliability header strip manufactured by Samtec Inc. It features a 1.27 mm (0.050 in) pitch and contains four positions. The connector utilizes surface mount termination with mixed technology capabilities. Contact plating consists of gold over nickel to ensure signal integrity. The unit operates within a temperature range of -55°C to +125°C and meets UL94 V-0 flammability standards for the insulation material.

Headers, Male Pins Feature Summary

• High reliability design optimized for frequent mating cycles
• Mixed technology surface mount termination for flexible PCB integration
• Gold-plated contacts provide corrosion resistance and stable electrical performance

Headers, Male Pins Applications

• High-density board-to-board interconnects
• Board-to-cable connections requiring robust mechanical retention
• Automotive electronic control units demanding high reliability

Headers, Male Pins Procurement Notes

Verify the specific suffix configuration against the official Samtec datasheet to confirm pin count, pitch, and termination style. Ensure the selected variant matches the required operating temperature range and current rating specifications for the target application environment before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when high mating cycle durability and mixed technology mounting are required. The dual row configuration supports higher density interconnects compared to single row alternatives. Verify that the surface mount footprint aligns with the PCB design constraints and thermal profile requirements.

Headers, Male Pins Part Context

This part belongs to the FTSH series of high reliability header strips from Samtec. The series is engineered for applications requiring superior mechanical strength and consistent electrical performance under harsh conditions. The specific model denotes a dual row, four-position configuration with standard 0.050 inch spacing.

Headers, Male Pins Replacement Considerations

Cross-reference with other Samtec FTSH variants or compatible high-reliability header strips from alternative manufacturers. Ensure exact matching of pitch, row count, termination type, and contact plating thickness to maintain mechanical and electrical compatibility.
