FTSH-105-02-F-DH-C

Headers, Male Pins Overview

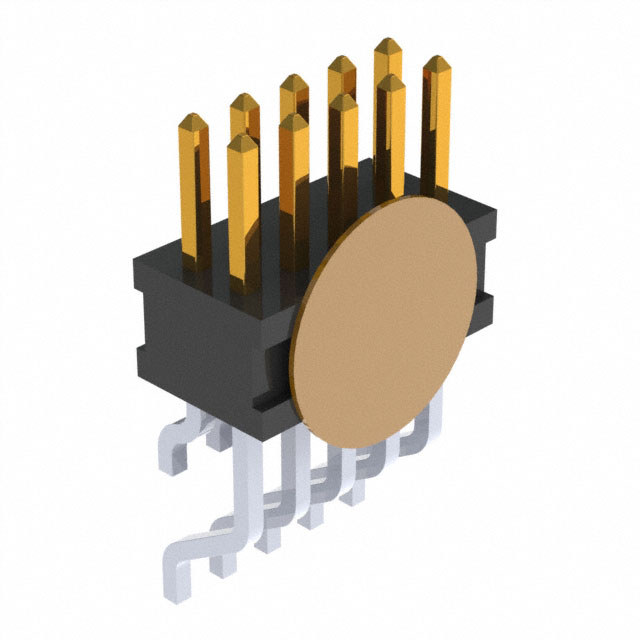

The FTSH-105-02-F-DH-C is a high-reliability header strip from the Samtec FTSH series, designed for board-to-board connections. It features a 1.27mm (0.050 inch) pitch with two rows and ten positions. The connector utilizes surface mount right-angle termination with male pin contacts made of phosphor bronze. Contact plating consists of flash gold over nickel on mating surfaces and matte tin over nickel on tails. The housing is constructed from black liquid crystal polymer (LCP) rated UL94 V-0. It operates within a temperature range of -55°C to +125°C and supports a current rating of 3.4A per contact.

Headers, Male Pins Feature Summary

• Configurable micro header design offering various post heights and termination options including surface mount and through-hole tails.
• High mating cycle capability suitable for demanding applications, meeting or exceeding MIL-DTL-55302 testing standards.
• Flexible orientation options available in vertical and horizontal row configurations to accommodate diverse layout requirements.

Headers, Male Pins Applications

• Board-to-board interconnections requiring high reliability
• Applications involving high mating cycles
• Severe environment testing qualified installations

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official documentation to confirm exact physical dimensions and termination style. Ensure compatibility with mating parts regarding post height and electrical ratings. Confirm RoHS compliance status and packaging type matches project requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a rigid surface mount header with right-angle orientation is required. Consider the FTSH series for its configurability and high reliability features. Evaluate thermal performance and current carrying capacity against system demands. Verify mechanical fit within the assembly constraints using provided CAD models.

Headers, Male Pins Part Context

This part belongs to the FTSH series of high-reliability header strips manufactured by Samtec Inc. The series is known for its flexibility in configuration, supporting both through-hole and surface mount technologies. It is engineered for robust performance in challenging environments, often utilized in industrial and automotive sectors where durability is critical.

Headers, Male Pins Replacement Considerations

FTSH-105-01-F-DH-C-TR

Headers, Male Pins FAQ

What is the operating temperature range for this connector?

The connector operates within a temperature range of -55°C to +125°C.

Does this connector meet military specifications?

Yes, the FTSH series meets or exceeds MIL-DTL-55302 testing standards.
